Motor Connecting Cables

2YSLCY-JB/2YSLCYK-JB

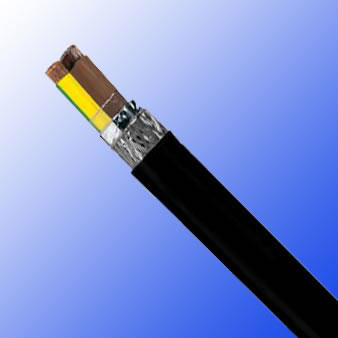

2YSLCYK-JB 2YSLCYK-JB

Application
These cables are double shielded, large gauge size, PVC motor supply cables Polyethylene insulation over
very fine stranded copper provides a low-loss transfer of power, excellent low capacitance performance
and superior flexibility when compared to conventional PVC cables. The applications include frequency
converters, motor runs, connections with high electromagnetic interference. Found in the automotive, paper
and food industry, environmental technology, packaging industry, machine tools and handling equipment. The
overall foil and braid shield offer excellent protection against electromagnetic and electrical interferences.
For medium mechanical stresses found indoors in dry, moist and wet areas. For 2YSLCYK-JB ,the black UVresistant
jacket also allows for outdoor use and for direct burial applications.

Standard and Approval
VDE 0250 & 0281, EMC to EN 55011, EMC to VDE-0875 part-11, CE Low Voltage Directive 73/23/EEC and
93/68/EEC, ROHS compliant

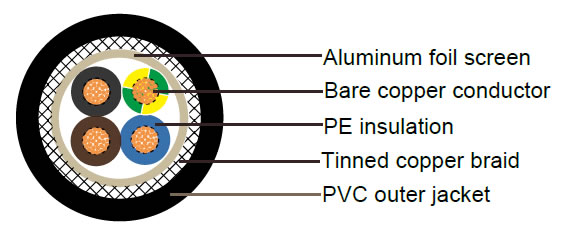

Cable construction
- Stranded bare copper conductor according to DIN VDE 0295, IEC60228 cl. 5
- Polyethylene(PE) insulation
- Colours according to HD 308 S2(VDE 0293- 308)
- Special aluminum foil screening
- Tinned copper braiding, coverage approx. 80%
- For 2YSLCY special transparent PVC sheath made of PVC compound YM2 acc. VDE 0207 -5, leadfree,
flame retardant & self-extinguishing
- For 2YSLCYK black PVC sheath made of cold-flexible PVC compound DMV5 acc. VDE 0276-603, leadfree,
UV resistant, outdoor and direct burial use, flame retardant & self-extinguishing, IEC 60332.1 EEU directives
cables conforms to EEC 79/29 directive ( Low Voltage Directive)

Technical Characteristics
- Working voltage: 600/1000 volts
- Test voltage: 4000 volts
- Minimum bending radius: 20 x Ø
- Flexing temperature: -5º C to +70º C
- Fixed installation temperature: - 40º C to +70º C
- Flame retardant: IEC 60332.1
- Insulation resistance: >20 GΩ x km
- Coupling resistance max. 250 Ω/km
- Radiation resistance up to 80 x106 cJ/kg (up to 80 Mrad)
- Mutual capacitance: core/core 70 to 250 nF/km,
core/braiding 110 to 410 nF/km

Cable Parameter



AWG

No. of Cores x Nominal Cross Sectional Area
# x mm²

Nominal Overall Diameter mm

Mutual
capacitance core/core approx. nF/km

Mutual
capacitance core/screen approx. nF/km

Copper Weight kg / km

Cable Weight kg / km

16(30/30)

4 G 1.5

11.6

70

110

95

230

14(50/30)

4 G 2.5

13.1

80

130

150.0

300

12(56/28)

4 G 4

14.6

90

150

235.0

485

10(84/28)

4 G 6

16.0

110

170

320.0

630

8(80/26)

4 G 10

19.5

120

190

533.0

860

6(128/26)

4 G 16

22.0

130

220

789.0

1,290

4(200/26)

4 G 25

26.2

145

230

1,236.0

1,860

2(280/26)

4 G 35

29.4

150

260

1,662.0

2,610

1(400/26)

4 G 50

37.5

175

290

2,345.0

2,950

2/0(356/24)

4 G 70

40.0

180

300

3,196.0

3,950

3/0(485/24)

4 G 95

46.4

195

320

4,316.0

5,300

4/0(614/24)

4 G 120

53.1

215

340

5,435.0

6,600

300 MCM (765/24)

4 G 150

57.2

230

360

6,394.0

7,043

350 MCM (944/24)

4 G 185

61.1

240

380

7639

8384

500 MCM (1225/24)

4 G 240

67.3

250

410

10013

11611
