Application
These screened cables are designed for use as a data cable in control circuits, in tool-making and machine industries as well as a signal cable in computer systems and electronics. PVC inner sheath has been replaced in these cables by a stabilising foil separator, thus reducing the total diameter of the cables considerably and thereby reducing the bending radius, total weight etc.
Standards
DIN VDE 0245

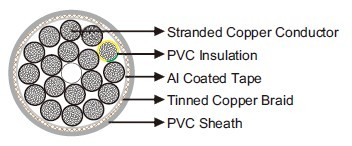

Construction
Conductor: Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228.
Insulation: PVC Type YI 2.
Separator: Al coated tape.
Screen: Tinned copper braid.
Sheath: PVC Type YM 2/TM 2.
Technical Data
Rated Voltage Uo/U (Um) |
300/500V |
Operating Temperatures |
flexing: -15℃~+70℃; fixed: -40℃~+70℃ |
Minimum Bending Radius |
flexing: 20×OD; fixed: 10×OD |
Flame Retardant |
IEC 60332-1 |
Ozone Resistant |
Yes |
Silicone Free |
Yes |
Lead Free |
Yes |
Dimensions and Weight
Construction |
Nominal Overall Diameter |
Nominal Weight |
No. of coresGmm² |
mm |
kg/km |
2×0.5 |
5.4 |
45 |
3G0.5 |
5.8 |
53 |
4G0.5 |
6.3 |
63 |
5G0.5 |
6.7 |
76 |
6G0.5 |
7.2 |
87 |
7G0.5 |
7.3 |
107 |
8G0.5 |
7.7 |
109 |
12G0.5 |
9.2 |
140 |
18G0.5 |
10.2 |
179 |
25G0.5 |
13.3 |
256 |
2G0.75 |
6.0 |
54 |
3G0.75 |
6.3 |
65 |
4G0.75 |
6.8 |
77 |
5G0.75 |
7.3 |
91 |
6G0.75 |
7.8 |
102 |
7G0.75 |
7.8 |
115 |
8G0.75 |
8.3 |
137 |
12G0.75 |
10.1 |
177 |
18G0.75 |
11.6 |
250 |
25G0.75 |
13.9 |
326 |
34G0.75 |
15.6 |
406 |
50G0.75 |
19.0 |
576 |
2×1 |
6.2 |
60 |
3G1 |
6.5 |
73 |
4G1 |
7.0 |
89 |
5G1 |
7.6 |
105 |
6G1 |
8.2 |
110 |
7G1 |
8.4 |
139 |
8G1 |
9.0 |
157 |
12G1 |
10.4 |
207 |
18G1 |
12.4 |
295 |
25G1 |
14.9 |
384 |
34G1 |
16.6 |
530 |
50G1 |
19.6 |
1020 |
2×1.5 |
6.8 |
70 |
3G1.5 |
7.2 |
90 |
4G1.5 |
7.8 |
108 |
5G1.5 |
8.4 |
125 |
7G1.5 |
9.3 |
160 |
8G1.5 |
10.0 |
204 |
12G1.5 |
11.8 |
279 |
18G1.5 |
14.0 |
350 |
25G1.5 |
16.9 |
530 |
34G1.5 |
18.9 |
720 |
42G1.5 |
20.1 |
820 |
2×2.5 |
8.0 |
104 |
3G2.5 |
8.6 |
140 |
4G2.5 |
9.4 |
173 |
5G2.5 |
10.0 |
206 |
7G2.5 |
10.8 |
267 |
12G2.5 |
14.6 |
432 |
2×4 |
9.8 |
185 |
4G4 |
11.1 |
236 |
5G4 |
12.1 |
288 |
7G4 |
14.0 |
500 |
2×6 |
11.7 |
268 |
3G6 |
12.5 |
330 |
4G6 |
12.8 |
339 |
5G6 |
14.2 |
416 |
7G6 |
16.9 |
672 |
2×10 |
14.7 |
425 |
3G10 |
15.7 |
500 |
4G10 |
17.3 |
783 |
5G10 |
19.2 |
856 |
7G10 |
21.4 |
1305 |
4G16 |
20.8 |
880 |
5G16 |
22.6 |
1295 |
4G25 |
24.9 |
1570 |
5G25 |
27.8 |
1965 |
4G35 |
28.4 |
2070 |
5G35 |
31.6 |
2690 |
4G50 |
34.6 |
3015 |
G: with green-yellow earth core
×: without green-yellow earth core
