     Application :This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.

     Description

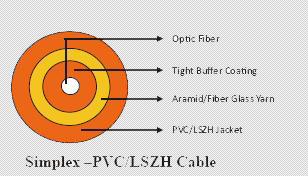

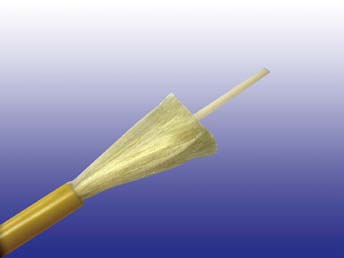

Simplex

Simplex cable consists of single tight buffered fiber with aramid yarns as tensile strength members with

jacket of either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

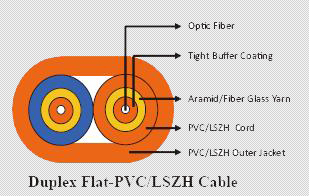

Duplex Flat

Duplex Flat Cable consists of two simplex units. Two simplex cords are placed side by side and jacketed

with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

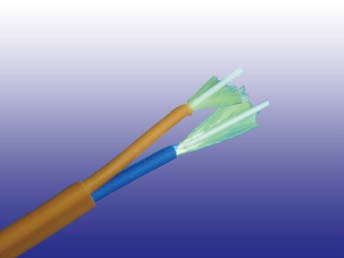

Duplex Round

Duplex Round Cable consists of two single fibers, each with a color-coded PVC tight buffer. They are

reinforced with aramid yarn to provide physical and tensile strength. The fibers are jacketed with either Flame Retardant PVC or LSZH compound. The cable is unconnectorized.

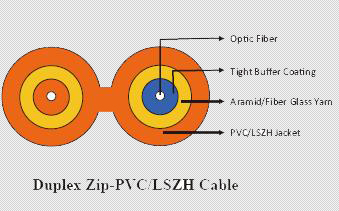

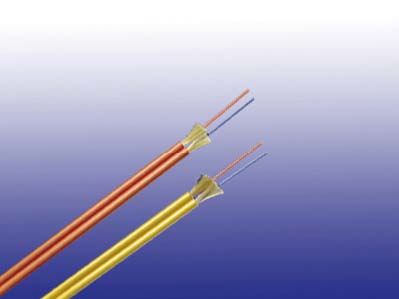

Duplex Zip

Duplex Zipcord Cable consists of two single fibers, each with a color-coded PVC tight buffer. They

are reinforced with aramid yarn to provide physical and tensile strength. The fibers have either Flame Retardant PVC or LSZH compound jackets connected by a web to form a Āzipcordā construction. The cable is unconnectorized.

     Construction

Fiber Optic Cables
Fiber Optic Cables

Fiber Optic Cables
Fiber Optic Cables
Fiber Optic Cables
Fiber Optic Cables
Fiber Optic Cables
Fiber Optic Cables

     Physical Properties

Fiber Count

Cable Type

Nominal Weight(kg/km)

Nominal Weight(lb/kft)

Nominal Outer Diameter(mm)

Nominal Outer Diameter(in)

Maximum Pulling Load

Installation(N/Ib)

In Service(N/Ib)

1

Simplex 2.0mm

7.6

5.10

2.0

0.079

490/110

290/65

1

Simplex 2.5mm

7.8

5.23

2.5

0.098

490/110

290/65

1

Simplex 2.8mm

8.0

5.37

2.8

0.110

490/110

290/65

1

Simplex 3.0mm

8.2

5.50

3.0

0.118

490/110

290/65

2

Duplex Flat

28.0

18.79

4.0X6.8

0.157X0.267

980/220

580/130

2

Duplex Round

18.4

12.35

4.2

0.165

980/220

580/130

2

Duplex Zip

15.0

10.07

2.4X4.8

0.094X0.188

980/220

580/130

     Mechanical Properties

Minimum Bending Radius:

Under installation:20hOD

During operation:10hOD

Temperature Range:

Operating Temperature Range:-40℃(-40℉) to +70℃(+158℉)

Storage Temperature Range:-50℃(-58℉) to +70℃(+158℉)

Maximum Compressive Load:2000N

Repeated Impact: 2.9 N.m (J)3h2 impacts

Twist (Torsion):180h10 times, 125hOD

Cyclic Flexing:25 cycles for armoured cables.;

                       100 cycles for unarmoured cables.

Crush Resistance:875N/cm (500lb/in)

    Fiber Compliance

Temperature Cycling IEC60794-1-2-F2 Repeated Bending IEC60794-1-2-E6
Tensile Strength IEC60794-1-2-E17 ATorsion IEC60794-1-2-E
Crush IEC60794-1-2-E3 Kink IEC60794-1-2-E10
Impact IEC60794-1-2-E4 Cable Bend IEC60794-1-2-E11
      Cool Bend IEC60794-1-2-E11

     Safety Compliance

General Purpose Grade Flammability Test: OFN (UL1581)

Riser Grade

Plenum Grade

FRPVC Grade

LSZH Grade



LSFROH Grade





FR Grade

Flammability Test: OFNR/FT4 (UL1666)

Flammability Test: OFNP/FT6 (UL 910)

Flammability Test: IEC60332-1

Halogen Content Test: IEC 60754-1

Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

Halogen Content Test: IEC 60754-1

Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2

Flammability Test: IEC60332-1 & IEC 60332-3C/A

Fire Resistance Test: IEC 60331 / BS 6387 CWZ

    Standard Compliance

GR409-CORE                                       TIA/EIA 568B.3                                 ICEA-S-83-596

    Features

•Suitable for indoor use, such as routing connections in patching systems

•Short "patch cord" cables ideal for links between electronic equipment and fiber panels

•Compatible with wide variety of fiber optic connectors

•High quality tight-buffer coating on fiber for environmental and mechanical protection

•Customized jacket colors available for matching connectors.

•Private labeling on the cable outer jacket is also available.
