Automotive Cable

Germany Standard FLR11Y


This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

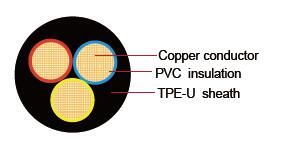

Conductor: Cu-ETP1 bare according to DIN EN 13602

Insulation: PVC Outer

Sheath: TPE-U

Standard: ISO 6722 Class B

Special properties:

Flame retardant

Highly resistant against acids,lyes,petrol and diesel

Technical Parameters:

Operating temperature: –40°C to +105°C

Conductor Construction



Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C
Nominal thickness Diameter of core Sheath wall thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
2x0.75 42/0.16 1.2 24.7 0.4 1.9 0.8 5.2 5.6 47
3x1 32/0.21 1.5 18.5 0.35 2.0 0.7 5.6 6.0 54
3x1.5 30/0.26 1.7 13.3 0.4 2.4 0.75 6.5 6.9 71
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
