Thermocouple Cables |  |
|
|
|||
 |
|
|
Twisted Single Pair PFA Insulated
Application
These cables are used with thermocouples for temperature measurements.

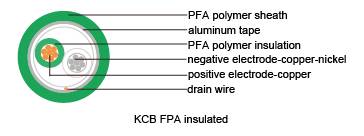

Specification
Conductor: Solid or stranded. Material is according to thermocouple type.
Insulation: PFA polymer
Screen: Aluminum tape
Drain wire: Tinned copper
Outer sheath: PFA polymer
Construction: Round
Color code: According to IEC 60584-3
K Type
AWG(mm) |
Insulation Material |
Screen Material |
Sheath |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
24 (0.51) |
PFA Polymer |
Aluminum tape |
PFA Polymer |
260 |
2.7 |
13.4 |
24 (7/0.2) |
PFA Polymer |
Aluminum tape |
PFA Polymer |
260 |
2.9 |
13.8 |
20 (0.81) |
PFA Polymer |
Aluminum tape |
PFA Polymer |
260 |
3.7 |
30.0 |
20 (7/0.32) |
PFA Polymer |
Aluminum tape |
PFA Polymer |
260 |
3.8 |
30.3 |
