Thermocouple Cables |  |
|
|
|||
 |
|
|

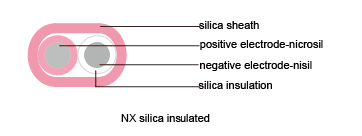

Flat Single Pair Silica Insulated
Application
These cables are used with thermocouples for temperature measurements.
Specification
Conductor: Solid. Material is according to thermocouple type.
Insulation: Silica
Outer sheath: Silica
Construction: Flat
Color code: According to IEC 60584-3
K Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
24 (0.51) |
silica |
silica |
870 |
2.2 x 3.4 |
16.7 |
20 (0.81) |
silica |
silica |
980 |
2.7 x 3.9 |
20.0 |
14 (1.63) |
silica |
silica |
1090 |
3.6 x 5.0 |
53.4 |
J Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
24 (0.51) |
silica |
silica |
370 |
2.2 x 3.4 |
16.7 |
20 (0.81) |
silica |
silica |
480 |
2.7 x 3.9 |
20.0 |
14 (1.63) |
silica |
silica |
590 |
3.6 x 5.0 |
53.4 |
N Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
24 (0.51) |
silica |
silica |
980 |
2.2 x 3.4 |
10.0 |
20 (0.81) |
silica |
silica |
980 |
2.7 x 3.9 |
11.7 |
14 (1.63) |
silica |
silica |
1090 |
3.6 x 5.0 |
26.7 |
