Thermocouple Cables |  |
|
|
|||
 |
|
|

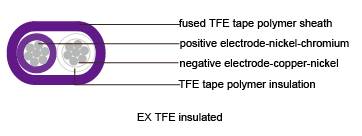

Flat Single Pair TFE Insulated
Application
These cables are used with thermocouples for temperature measurements.
Specification
Conductor: Solid or stranded. Material is according to thermocouple type.
Insulation: TFE Tape Polymer
Outer sheath: Fused TFE Tape Polymer
Construction: Flat
Color code: According to IEC 60584-3
K Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
24 (0.51) |
TFE Tape Polymer |
Fused TFE Tape Polymer |
260 |
1.3 x 1.9 |
10.0 |
24 (7/0.2) |
TFE Tape Polymer |
Fused TFE Tape Polymer |
260 |
1.3 x 2.2 |
10.3 |
20 (0.81) |
TFE Tape Polymer |
Fused TFE Tape Polymer |
260 |
1.5 x 2.5 |
16.7 |
20 (7/0.32) |
TFE Tape Polymer |
Fused TFE Tape Polymer |
260 |
1.5 x 2.7 |
17.1 |
E Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
24 (0.51) |
TFE Tape Polymer |
Fused TFE Tape Polymer |
260 |
1.3 x 1.9 |
10.0 |
24 (7/0.2) |
TFE Tape Polymer |
Fused TFE Tape Polymer |
260 |
1.3 x 2.2 |
10.3 |
20 (0.81) |
TFE Tape Polymer |
Fused TFE Tape Polymer |
260 |
1.5 x 2.5 |
16.7 |
20 (7/0.32) |
TFE Tape Polymer |
Fused TFE Tape Polymer |
260 |
1.5 x 2.7 |
17.1 |
