Thermocouple Cables |  |
|
|
|||
 |
|
|

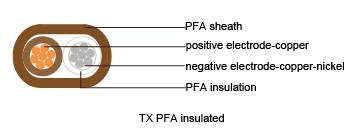

Flat Single Pair PFA Insulated
Application
These cables are used with thermocouples for temperature measurements.
Specification
Conductor: Solid or stranded. Material is according to thermocouple type.
Insulation: PFA
Outer sheath: PFA or glass braid
Construction: Flat
Color code: According to IEC 60584-3
K Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
40 (0.08) |
PFA |
Glass Braid |
260 |
0.7 x 0.9 |
3.4 |
36 (0.13) |
PFA |
Glass Braid |
260 |
0.7 x 1.0 |
3.6 |
30 (0.25) |
PFA |
Glass Braid |
260 |
0.9 x 1.2 |
4.5 |
K Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
40 (0.08) |
PFA |
PFA |
260 |
0.4 x 0.7 |
3.4 |
36 (0.13) |
PFA |
PFA |
260 |
0.5 x 0.8 |
3.6 |
30 (0.25) |
PFA |
PFA |
260 |
0.6 x 1.0 |
4.0 |
24 (0.51) |
PFA |
PFA |
260 |
1.4 x 2.4 |
10.0 |
24 (7/0.2) |
PFA |
PFA |
260 |
1.6 x 2.6 |
10.5 |
22 (7/0.25) |
PFA |
PFA |
260 |
1.7 x 3.4 |
13.4 |
20 (0.81) |
PFA |
PFA |
260 |
1.7 x 3.0 |
16.7 |
20 (7/0.32) |
PFA |
PFA |
260 |
1.9 x 3.2 |
17.1 |
E Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
40 (0.08) |
PFA |
PFA |
260 |
0.4 x 0.7 |
3.4 |
36 (0.13) |
PFA |
PFA |
260 |
0.5 x 0.8 |
3.6 |
30 (0.25) |
PFA |
PFA |
260 |
0.6 x 1.0 |
4.0 |
24 (0.51) |
PFA |
PFA |
260 |
1.4 x 2.4 |
10.0 |
24 (7/0.2) |
PFA |
PFA |
260 |
1.6 x 2.6 |
10.5 |
22 (7/0.25) |
PFA |
PFA |
260 |
1.7 x 3.4 |
13.4 |
20 (0.81) |
PFA |
PFA |
260 |
1.7 x 3.0 |
16.7 |
20 (7/0.32) |
PFA |
PFA |
260 |
1.9 x 3.2 |
17.1 |
J Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
40 (0.08) |
PFA |
PFA |
260 |
0.4 x 0.7 |
3.4 |
36 (0.13) |
PFA |
PFA |
260 |
0.5 x 0.8 |
3.6 |
30 (0.25) |
PFA |
PFA |
260 |
0.6 x 1.0 |
4.0 |
24 (0.51) |
PFA |
PFA |
260 |
1.4 x 2.4 |
10.0 |
24 (7/0.2) |
PFA |
PFA |
260 |
1.6 x 2.6 |
10.5 |
22 (7/0.25) |
PFA |
PFA |
260 |
1.7 x 3.4 |
13.4 |
20 (0.81) |
PFA |
PFA |
260 |
1.7 x 3.0 |
16.7 |
20 (7/0.32) |
PFA |
PFA |
260 |
1.9 x 3.2 |
17.1 |
T Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
40 (0.08) |
PFA |
PFA |
150 |
0.4 x 0.7 |
3.4 |
36 (0.13) |
PFA |
PFA |
150 |
0.5 x 0.8 |
3.6 |
30 (0.25) |
PFA |
PFA |
150 |
0.6 x 1.0 |
4.0 |
24 (0.51) |
PFA |
PFA |
260 |
1.4 x 2.4 |
10.0 |
24 (7/0.2) |
PFA |
PFA |
260 |
1.6 x 2.6 |
10.5 |
22 (7/0.25) |
PFA |
PFA |
260 |
1.7 x 3.4 |
13.4 |
20 (0.81) |
PFA |
PFA |
260 |
1.7 x 3.0 |
16.7 |
20 (7/0.32) |
PFA |
PFA |
260 |
1.9 x 3.2 |
17.1 |
N Type
AWG(mm) |
Insulation Material |
Sheath Material |
Max. Temp. (°C) |
Nominal O.D. (mm) |
Weight (kg/km) |
30 (0.25) |
PFA |
PFA |
260 |
0.6 x 1.0 |
1.7 |
24 (0.51) |
PFA |
PFA |
260 |
1.4 x 2.4 |
6.7 |
20 (0.81) |
PFA |
PFA |
260 |
1.7 x 3.0 |
10.0 |
