Applications :

• Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology,especially converter technology.

Standards :

• BS 6853 -1a
• DIN 5510-1 1-4
• NFF 16-101 F0

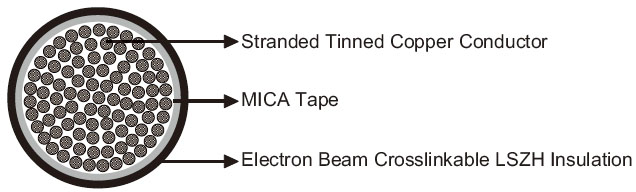

Construction :

• Conductors : Circular Class 5 stranded tinned copper to IEC60228/VDE 0295.
• Flame Barrier : MICA tape.
• Insulation : Electron beam crosslinkable LSZH compound.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	0.5	0.75	1	1.5	2.5
  Maximum Conductor Resistance	Ω/km	40.1	26.7	20.0	13.7	8.21
  Voltage Rating	KV	0.3/0.5

Mechanical and Thermal Properties :

• Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
• Temperature Range : -40℃ ~+120℃ (Static); -35℃ ~+90℃ (Flexing).
• Short Circuit Temperature : +280℃.

Dimensions and Weight :

No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Number and Nominal Diameter of Strands No./mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1×0.5	16/0.2	0.3	2.00	8
1×0.75	24/0.2	0.3	2.25	10
1×1.0	32/0.2	0.35	2.50	14
1×1.5	30/0.25	0.35	2.80	18
1×2.5	50/0.25	0.35	3.20	29
