   Medium Voltage XLPE Insulated Steel Wire Armored Cable with Lead Cover to IEC 60502-2

These cables are suitable for installation mostly in power supply stations, indoors and in cable ducts,
outdoors, underground and in water as well as for installation on cable trays for industries, switchboards
and power stations, where require chemical and mechanical protection. The lead cover brings an
enhanced resistance to aliphatic and aromatic hydrocarbon.

IEC 60228; IEC 60502-2

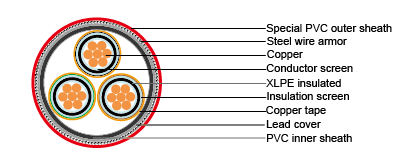

Conductor: Stranded bare copper (class 2)
Conductor screen: This will be an extruded layer of semi-conducting crosslinkable compound applied
under simultaneous triple extrusion process over the conductor along with the insulation and the
insulation screen.
Insulation: XLPE
Insulation screen: This will be a layer of semi-conducting crosslinkable compound which will be applied
by triple extrusion process over the insulation.
Core identification:
1 Core: Natural
3 cores: Black, Green, Brown
Inner sheath: PVC
Lead cover
Armor: Galvanized steel wires for 3 cores or aluminium wires for 1 core cable
Sheath: Special PVC. Color: red. U.V resistance can be offered upon request.

Fire retardance: IEC 60332-3-22
Operating temperature: -20~60°C
Max. conductor operating temperature: 90°C
Chemical resistance: Aliphatic and aromatic hydrocarbon resistance
