Multipair Overall Foil & Braid Screened Cables

Multipair Overall Foil & Braid Screened Cables-Belden Equivalent 9830


These cables have pairs laid up in a foil/braid screen, suitable for RS 232 & RS 422 applications.


Belden Equivalent Cables 9830

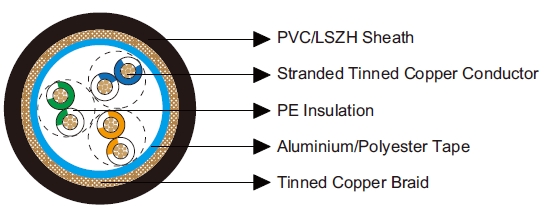

Conductor: Tinned copper wire.

Insulation: PE.

Overall Screen1: Aluminium/Polyester Tape.

Overall Screen2: Tinned copper braid, 65% coverage.

Sheath: PVC/LSZH.

Insulation Colour: White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White.

Electrical & Mechanical Characteristics

AWG   24
Conductor Construction   7x0.2
UL Style   2919
Maximum Conductor Resistance Ω/km 85
Voltage Rating V 30
Nominal Capacitance Conductor to Conductor pF/m 51
Nominal Capacitance Conductor to Screen pF/m 90
Bending Radius   10xOverall Diameter
Operating Temperature -30~80


Ordering Code No. of pairs Insulation Thickness Sheath Thickness Overall Diameter
    mm mm mm
BE119830V 3 0.38 0.81 7.4
BE119830H 3 0.38 0.81 7.4
