Type 241 1.1 to 11KV
应用
该电缆有多种用途，包括作为连续采煤机的主馈线，泵电缆和电源线。总半导屏蔽层提供与电力线接触之前的任何破坏护套物的保护接地触点。
标准
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

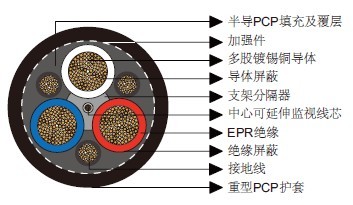

结构
3×导体：柔软的多股镀锡退火铜导体。
导体屏蔽：半导材料（用于电压为3.3/3.3kV及以上的电缆）。
绝缘：EPR。
绝缘屏蔽：半导橡胶。
支架分隔器：半导PCP。
总芯线屏蔽：半导PCP填充及覆层。
3×隙间接地线：柔软的多股镀锡铜导体及半导PCP覆层。
1×中心延伸监视线芯：柔软的多股镀锡铜导体与EPR覆层。
纺织加强件：宽松编织加强件。
护套：重型PCP护套。重型CPE/CSP护套可选。
尺寸和重量
标称导体 |
绞股规格 |
绝缘厚度 |
芯线屏蔽 |
监视导体 |
护套厚度 |
标称外径 |
标称重量 |
||
绞股规格 |
屏蔽截面 |
绞股规格 |
覆层厚度 |
||||||
mm² |
No/mm |
mm |
No/mm |
mm |
No/mm |
mm |
mm |
mm |
kg/100m |
Type 241.1 |
|||||||||
6 |
84/0.30 |
1.5 |
18/0.30 |
1.0 |
24/0.20 |
0.8 |
3.8 |
28.5 |
106 |
10 |
77/0.40 |
1.5 |
27/0.30 |
1.0 |
24/0.20 |
0.8 |
3.8 |
31.1 |
127 |
16 |
126/0.40 |
1.6 |
42/0.30 |
1.0 |
24/0.20 |
0.8 |
3.9 |
34.1 |
164 |
25 |
209/0.40 |
1.6 |
66/0.30 |
1.0 |
24/0.20 |
0.8 |
4.2 |
37.9 |
208 |
35 |
285/0.40 |
1.6 |
90/0.30 |
1.0 |
24/0.20 |
0.8 |
4.4 |
41.2 |
254 |
50 |
380/0.40 |
1.7 |
120/0.30 |
1.0 |
40/0.20 |
0.8 |
4.9 |
45.9 |
328 |
70 |
203/0.67 |
1.8 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
5.3 |
52.2 |
480 |
95 |
259/0.67 |
2.0 |
39/0.67 |
1.0 |
40/0.20 |
0.8 |
5.8 |
56.7 |
600 |
120 |
336/0.67 |
2.1 |
42/0.67 |
1.2 |
40/0.20 |
0.8 |
6.3 |
62.7 |
710 |
150 |
427/0.67 |
2.3 |
54/0.67 |
1.2 |
40/0.20 |
0.8 |
6.7 |
68.3 |
865 |
185 |
518/0.67 |
2.5 |
63/0.67 |
1.4 |
40/0.20 |
0.8 |
7.3 |
74.9 |
1030 |
240 |
672/0.67 |
2.8 |
77/0.67 |
1.4 |
40/0.20 |
0.8 |
8.0 |
83.3 |
1300 |
300 |
854/0.67 |
3.0 |
98/0.67 |
1.4 |
40/0.20 |
0.8 |
8.7 |
91.2 |
1600 |
Type 241.3 |
|||||||||
16 |
126/0.40 |
3.0 |
42/0.30 |
1.0 |
24/0.20 |
0.8 |
5.0 |
43.8 |
249 |
25 |
209/0.40 |
3.0 |
66/0.30 |
1.0 |
24/0.20 |
0.8 |
5.3 |
47.7 |
315 |
35 |
285/0.40 |
3.0 |
90/0.30 |
1.0 |
24/0.20 |
0.8 |
5.6 |
51.1 |
376 |
50 |
380/0.40 |
3.0 |
120/0.30 |
1.2 |
40/0.20 |
0.8 |
6.0 |
55.2 |
450 |
70 |
203/0.67 |
3.0 |
39/0.67 |
1.2 |
40/0.20 |
0.8 |
6.4 |
60.3 |
576 |
95 |
259/0.67 |
3.0 |
48/0.67 |
1.2 |
40/0.20 |
0.8 |
6.8 |
63.8 |
675 |
120 |
336/0.67 |
3.0 |
60/0.67 |
1.2 |
40/0.20 |
0.8 |
7.2 |
69.1 |
810 |
150 |
427/0.67 |
3.0 |
77/0.67 |
1.2 |
40/0.20 |
0.8 |
7.6 |
73.8 |
952 |
185 |
518/0.67 |
3.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
8.0 |
79.2 |
1130 |
240 |
672/0.67 |
3.0 |
112/0.67 |
1.4 |
40/0.20 |
0.8 |
8.6 |
86.0 |
1380 |
300 |
854/0.67 |
3.0 |
144/0.67 |
1.4 |
40/0.20 |
0.8 |
9.1 |
92.6 |
1660 |
Type 241.6 |
|||||||||
16 |
126/0.40 |
5.0 |
42/0.30 |
1.4 |
24/0.20 |
0.8 |
6.1 |
54.9 |
365 |
25 |
209/0.40 |
5.0 |
66/0.30 |
1.4 |
24/0.20 |
0.8 |
6.4 |
58.8 |
440 |
35 |
285/0.40 |
5.0 |
90/0.30 |
1.4 |
24/0.20 |
0.8 |
6.7 |
62.2 |
509 |
50 |
380/0.40 |
5.0 |
120/0.30 |
1.4 |
40/0.20 |
0.8 |
7.1 |
66.2 |
592 |
70 |
203/0.67 |
5.0 |
39/0.67 |
1.4 |
40/0.20 |
0.8 |
7.4 |
71.2 |
727 |
95 |
259/0.67 |
5.0 |
48/0.67 |
1.4 |
40/0.20 |
0.8 |
7.9 |
74.8 |
835 |
120 |
336/0.67 |
5.0 |
60/0.67 |
1.4 |
40/0.20 |
0.8 |
8.3 |
80.2 |
990 |
150 |
427/0.67 |
5.0 |
77/0.67 |
1.4 |
40/0.20 |
0.8 |
8.6 |
84.6 |
1140 |
185 |
518/0.67 |
5.0 |
91/0.67 |
1.4 |
40/0.20 |
0.8 |
9.0 |
90.0 |
1311 |
240 |
672/0.67 |
5.0 |
119/0.67 |
1.4 |
40/0.20 |
0.8 |
9.6 |
96.8 |
1576 |
300 |
854/0.67 |
5.0 |
156/0.67 |
1.4 |
40/0.20 |
0.8 |
10.2 |
103.6 |
1900 |
Type 241.11 |
|||||||||
25 |
209/0.40 |
7.6 |
66/0.30 |
1.8 |
24/0.20 |
0.8 |
7.8 |
73.2 |
645 |
35 |
285/0.40 |
7.6 |
90/0.30 |
1.8 |
24/0.20 |
0.8 |
8.1 |
76.6 |
724 |
50 |
380/0.40 |
7.6 |
120/0.30 |
1.8 |
40/0.20 |
0.8 |
8.5 |
80.6 |
825 |
70 |
203/0.67 |
7.6 |
39/0.67 |
1.8 |
40/0.20 |
0.8 |
8.9 |
85.7 |
975 |
95 |
259/0.67 |
7.6 |
48/0.67 |
1.8 |
40/0.20 |
0.8 |
9.3 |
89.1 |
1088 |
120 |
336/0.67 |
7.6 |
60/0.67 |
1.8 |
40/0.20 |
0.8 |
9.7 |
94.4 |
1258 |
150 |
427/0.67 |
7.6 |
77/0.67 |
1.8 |
40/0.20 |
0.8 |
10.0 |
98.9 |
1423 |
185 |
518/0.67 |
7.6 |
91/0.67 |
1.8 |
40/0.20 |
0.8 |
10.4 |
104.2 |
1610 |
