Type 209 1.1 to 11KV
应用
Type 209系列电缆主要用于机械设备的灵活供电，更适合作为拖曳电缆使用。小型电缆适用于钻及手持工具设备。
标准
AS/NZS 1802:2003
AS/NZS 1125
AS/NZS 3808
AS/NZS 5000.1

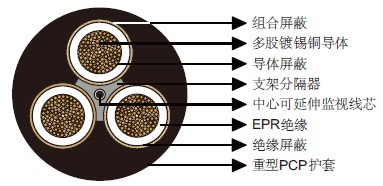

结构
3×导体：柔软的多股镀锡退火铜导体。
导体屏蔽：半导材料（用于电压为3.3/3.3kV及以上的电缆）。
绝缘：EPR。
绝缘屏蔽：半导橡胶。
组合屏蔽（接地线）：镀锡退火铜线与涤纶纤维混合编织。
支架分隔器：半导PCP。
1×中心延伸监视线芯：柔软的多股镀锡铜导体与EPR覆层。
护套：重型PCP护套。重型CPE/CSP护套可选。
尺寸和重量
标称导体 |
绞股规格 |
绝缘厚度 |
芯线屏蔽 |
监视导体 |
护套厚度 |
标称外径 |
标称重量 |
||
绞股规格 |
屏蔽截面 |
绞股规格 |
覆层厚度 |
||||||
mm² |
No/mm |
mm |
No/mm |
mm² |
No/mm |
mm |
mm |
mm |
kg/100m |
Type 209.1 |
|||||||||
6 |
84/0.30 |
1.5 |
7/0.25 |
7.2 |
24/0.20 |
0.8 |
3.8 |
30.0 |
129 |
10 |
77/0.40 |
1.5 |
7/0.25 |
8.6 |
24/0.20 |
0.8 |
3.8 |
32.6 |
157 |
16 |
126/0.40 |
1.6 |
7/0.25 |
9.6 |
24/0.20 |
0.8 |
4.0 |
35.8 |
197 |
25 |
209/0.40 |
1.6 |
7/0.25 |
11.3 |
24/0.20 |
0.8 |
4.3 |
39.7 |
255 |
35 |
285/0.40 |
1.6 |
7/0.25 |
12.4 |
24/0.20 |
0.8 |
4.6 |
43.1 |
312 |
50 |
380/0.40 |
1.7 |
7/0.25 |
14.1 |
40/0.20 |
0.8 |
5.0 |
47.7 |
386 |
70 |
203/0.67 |
1.8 |
7/0.25 |
16.5 |
40/0.20 |
0.8 |
5.4 |
54.0 |
503 |
95 |
259/0.67 |
2.0 |
7/0.25 |
18.2 |
40/0.20 |
0.8 |
6.0 |
58.6 |
605 |
120 |
336/0.67 |
2.1 |
7/0.25 |
20.3 |
40/0.20 |
0.8 |
6.4 |
64.4 |
741 |
150 |
427/0.67 |
2.3 |
7/0.25 |
22.3 |
40/0.20 |
0.8 |
6.9 |
70.2 |
896 |
185 |
518/0.67 |
2.5 |
7/0.30 |
30.2 |
40/0.20 |
0.8 |
7.4 |
77.4 |
1092 |
240 |
672/0.67 |
2.8 |
7/0.30 |
33.6 |
40/0.20 |
0.8 |
8.2 |
86.0 |
1365 |
300 |
854/0.67 |
3.0 |
7/0.40 |
50.1 |
40/0.20 |
0.8 |
8.8 |
95.1 |
1715 |
Type 209.3 |
|||||||||
16 |
126/0.40 |
3.0 |
7/0.25 |
13.1 |
24/0.20 |
0.8 |
5.3 |
46.2 |
301 |
25 |
209/0.40 |
3.0 |
7/0.25 |
14.8 |
24/0.20 |
0.8 |
5.6 |
50.1 |
369 |
35 |
285/0.40 |
3.0 |
7/0.25 |
15.8 |
24/0.20 |
0.8 |
5.9 |
53.5 |
431 |
50 |
380/0.40 |
3.0 |
7/0.25 |
17.2 |
40/0.20 |
0.8 |
6.3 |
57.6 |
507 |
70 |
203/0.67 |
3.0 |
7/0.25 |
18.6 |
40/0.20 |
0.8 |
6.6 |
62.5 |
624 |
95 |
259/0.67 |
3.0 |
7/0.25 |
20.3 |
40/0.20 |
0.8 |
7.1 |
66.2 |
719 |
120 |
336/0.67 |
3.0 |
7/0.30 |
27.2 |
40/0.20 |
0.8 |
7.4 |
72.0 |
876 |
150 |
427/0.67 |
3.0 |
7/0.40 |
39.6 |
40/0.20 |
0.8 |
7.8 |
78.0 |
1072 |
185 |
518/0.67 |
3.0 |
7/0.40 |
42.2 |
40/0.20 |
0.8 |
8.2 |
83.4 |
1236 |
240 |
672/0.67 |
3.0 |
7/0.40 |
46.6 |
40/0.20 |
0.8 |
8.8 |
90.3 |
1500 |
300 |
854/0.67 |
3.0 |
7/0.50 |
63.2 |
40/0.20 |
0.8 |
9.4 |
98.4 |
1840 |
Type 209.6 |
|||||||||
16 |
126/0.40 |
5.0 |
7/0.25 |
17.2 |
24/0.20 |
0.8 |
6.4 |
57.3 |
435 |
25 |
209/0.40 |
5.0 |
7/0.25 |
18.6 |
24/0.20 |
0.8 |
6.7 |
61.2 |
512 |
35 |
285/0.40 |
5.0 |
7/0.25 |
18.6 |
24/0.20 |
0.8 |
7.0 |
64.6 |
582 |
50 |
380/0.40 |
5.0 |
7/0.25 |
21.3 |
40/0.20 |
0.8 |
7.3 |
68.5 |
668 |
70 |
203/0.67 |
5.0 |
7/0.25 |
23.4 |
40/0.20 |
0.8 |
7.7 |
73.7 |
799 |
95 |
259/0.67 |
5.0 |
7/0.30 |
29.2 |
40/0.20 |
0.8 |
8.1 |
77.8 |
935 |
120 |
336/0.67 |
5.0 |
7/0.30 |
31.7 |
40/0.20 |
0.8 |
8.5 |
83.1 |
1090 |
150 |
427/0.67 |
5.0 |
7/0.40 |
45.7 |
40/0.20 |
0.8 |
8.9 |
89.1 |
1310 |
185 |
518/0.67 |
5.0 |
7/0.40 |
48.4 |
40/0.20 |
0.8 |
9.3 |
94.5 |
1480 |
240 |
672/0.67 |
5.0 |
7/0.40 |
52.8 |
40/0.20 |
0.8 |
9.9 |
101.4 |
1750 |
300 |
854/0.67 |
5.0 |
7/0.50 |
71.5 |
40/0.20 |
0.8 |
10.4 |
109.3 |
2120 |
Type 209.11 |
|||||||||
25 |
209/0.40 |
7.6 |
7/0.25 |
23.7 |
24/0.20 |
0.8 |
8.1 |
75.6 |
750 |
35 |
285/0.40 |
7.6 |
7/0.30 |
30.2 |
24/0.20 |
0.8 |
8.4 |
79.7 |
858 |
50 |
380/0.40 |
7.6 |
7/0.30 |
31.7 |
40/0.20 |
0.8 |
8.7 |
83.6 |
960 |
70 |
203/0.67 |
7.6 |
7/0.30 |
34.1 |
40/0.20 |
0.8 |
9.1 |
88.8 |
1093 |
95 |
259/0.67 |
7.6 |
7/0.40 |
47.5 |
40/0.20 |
0.8 |
9.6 |
93.7 |
1267 |
120 |
336/0.67 |
7.6 |
7/0.40 |
51.0 |
40/0.20 |
0.8 |
9.9 |
98.8 |
1436 |
150 |
427/0.67 |
7.6 |
7/0.40 |
53.7 |
40/0.20 |
0.8 |
10.3 |
103.5 |
1614 |
185 |
518/0.67 |
7.6 |
7/0.40 |
57.2 |
40/0.20 |
0.8 |
10.7 |
108.8 |
1830 |
