应用
该电缆适合沿传送带（也用于可替换单元）和材料处理设备（还可在电缆吊杆上连续移动或用来连接上下车厢）敷设，也可用于连接潜水泵单元。
标准
基于VDE 0250 Part 813

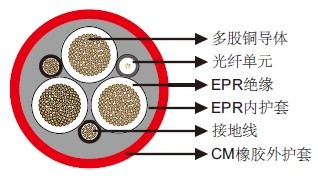

结构
导体：DIN VDE 0295标准class 5柔软多股铜导体。
内导体层：半导层。
绝缘：EPR。
外导体层：半导层。
接地线：分为2根分布于外层间隙。
光纤：FO 50/125或62.5/125或E9/125μm带保护护套。
内护套：EPR。
外护套：CM。
TSCGEWOEU5.jpg)
尺寸和重量
3.6/6kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+1×(6LWL) |
40.1 |
43.1 |
2650 |
3×25+2×50/2+1×(6LWL) |
42.4 |
45.4 |
3060 |
3×35+2×25/2+1×(6LWL) |
42.3 |
45.3 |
3060 |
3×35+2×50/2+1×(6LWL) |
44.0 |
47.0 |
3410 |
3×50+2×25/2+1×(6LWL) |
43.8 |
46.8 |
3490 |
3×50+2×50/2+1×(6LWL) |
46.1 |
49.1 |
3640 |
3×70+2×35/2+1×(6LWL) |
47.0 |
50.0 |
4350 |
3×70+2×50/2+1×(6LWL) |
52.0 |
56.0 |
5280 |
3×95+2×50/2+1×(6LWL) |
52.2 |
56.2 |
5550 |
3×120+2×70/2+1×(6LWL) |
49.6 |
50.9 |
7040 |
3×150+2×70/2+1×(6LWL) |
48.4 |
52.3 |
8000 |
3×185+2×95/2+1×(6LWL) |
51.3 |
55.3 |
9310 |
3×240+2×120/2+1×(6LWL) |
58.0 |
62.0 |
11940 |
3×300+2×150/2+1×(6LWL) |
63.2 |
67.2 |
14230 |
6/10 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+1×(6LWL) |
41.4 |
44.4 |
2770 |
3×25+2×50/2+1×(6LWL) |
43.1 |
46.1 |
3120 |
3×35+2×25/2+1×(6LWL) |
43.6 |
46.6 |
3190 |
3×35+2×50/2+1×(6LWL) |
44.7 |
47.7 |
3470 |
3×50+2×25/2+1×(6LWL) |
45.1 |
48.1 |
3620 |
3×50+2×50/2+1×(6LWL) |
46.8 |
49.8 |
4010 |
3×70+2×35/2+1×(6LWL) |
48.3 |
51.3 |
4500 |
3×70+2×50/2+1×(6LWL) |
52.7 |
56.7 |
5360 |
3×95+2×50/2+1×(6LWL) |
53.5 |
57.5 |
5710 |
3×120+2×70/2+1×(6LWL) |
57.2 |
61.2 |
6830 |
3×150+2×70/2+1×(6LWL) |
62.3 |
66.3 |
8180 |
3×185+2×95/2+1×(6LWL) |
65.3 |
69.3 |
9500 |
3×240+2×120/2+1×(6LWL) |
73.4 |
77.4 |
12160 |
3×300+2×150/2+1×(6LWL) |
78.6 |
82.6 |
14460 |
8.7/15 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+1×(6LWL) |
44.2 |
47.2 |
3050 |
3×25+2×50/2+1×(6LWL) |
45.4 |
48.4 |
3350 |
3×35+2×25/2+1×(6LWL) |
45.3 |
48.3 |
3320 |
3×35+2×50/2+1×(6LWL) |
47.0 |
50.0 |
3710 |
3×50+2×25/2+1×(6LWL) |
49.4 |
53.4 |
4160 |
3×50+2×50/2+1×(6LWL) |
51.2 |
55.2 |
4590 |
3×70+2×35/2+1×(6LWL) |
52.7 |
56.7 |
5080 |
3×70+2×50/2+1×(6LWL) |
55.0 |
59.0 |
5640 |
3×95+2×50/2+1×(6LWL) |
57.0 |
61.0 |
6160 |
3×120+2×70/2+1×(6LWL) |
62.1 |
66.1 |
7520 |
3×150+2×70/2+1×(6LWL) |
65.7 |
69.7 |
8670 |
3×185+2×95/2+1×(6LWL) |
68.7 |
72.7 |
10010 |
3×240+2×120/2+1×(6LWL) |
76.8 |
80.8 |
12730 |
3×300+2×150/2+1×(6LWL) |
82.0 |
86.0 |
15080 |
12/20 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+1×(6LWL) |
45.5 |
48.5 |
3140 |
3×25+2×50/2+1×(6LWL) |
47.2 |
50.2 |
3530 |
3×35+2×25/2+1×(6LWL) |
48.3 |
51.3 |
3640 |
3×35+2×50/2+1×(6LWL) |
51.0 |
55.0 |
4240 |
3×50+2×25/2+1×(6LWL) |
52.5 |
56.5 |
4530 |
3×50+2×50/2+1×(6LWL) |
52.5 |
56.5 |
4690 |
3×70+2×35/2+1×(6LWL) |
55.7 |
59.7 |
5460 |
3×70+2×50/2+1×(6LWL) |
58.0 |
62.0 |
6040 |
3×95+2×50/2+1×(6LWL) |
61.4 |
65.4 |
6770 |
3×120+2×70/2+1×(6LWL) |
65.1 |
69.1 |
7950 |
3×150+2×70/2+1×(6LWL) |
68.7 |
72.7 |
9130 |
3×185+2×95/2+1×(6LWL) |
73.2 |
77.2 |
10770 |
3×240+2×120/2+1×(6LWL) |
79.8 |
83.8 |
13260 |
3×300+2×150/2+1×(6LWL) |
86.3 |
91.3 |
16040 |
14/25 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+1×(6LWL) |
50.3 |
54.3 |
3740 |
3×25+2×50/2+1×(6LWL) |
50.3 |
54.3 |
3900 |
3×35+2×25/2+1×(6LWL) |
53.1 |
57.1 |
4270 |
3×35+2×50/2+1×(6LWL) |
53.1 |
57.1 |
4440 |
3×50+2×25/2+1×(6LWL) |
56.3 |
60.3 |
5000 |
3×50+2×50/2+1×(6LWL) |
56.3 |
60.3 |
5160 |
3×70+2×35/2+1×(6LWL) |
61.0 |
65.0 |
6190 |
3×70+2×50/2+1×(6LWL) |
61.0 |
65.0 |
6390 |
3×95+2×50/2+1×(6LWL) |
65.3 |
69.3 |
7340 |
3×120+2×70/2+1×(6LWL) |
69.0 |
73.0 |
8550 |
3×150+2×70/2+1×(6LWL) |
74.0 |
78.0 |
10020 |
3×185+2×95/2+1×(6LWL) |
77.0 |
81.0 |
11410 |
3×240+2×120/2+1×(6LWL) |
85.0 |
90.0 |
14380 |
3×300+2×150/2+1×(6LWL) |
90.2 |
95.2 |
16820 |
18/30 kV
芯数×标称截面积 |
最小外径 |
最大外径 |
标称重量 |
No. ×mm² |
mm |
mm |
kg/km |
3×25+2×25/2+1×(6LWL) |
53.7 |
57.7 |
4140 |
3×25+2×50/2+1×(6LWL) |
53.7 |
57.7 |
4310 |
3×35+2×25/2+1×(6LWL) |
56.6 |
60.6 |
4720 |
3×35+2×50/2+1×(6LWL) |
56.6 |
60.6 |
4880 |
3×50+2×25/2+1×(6LWL) |
61.2 |
65.2 |
5680 |
3×50+2×50/2+1×(6LWL) |
61.2 |
65.2 |
5840 |
3×70+2×35/2+1×(6LWL) |
64.4 |
68.4 |
6670 |
3×70+2×50/2+1×(6LWL) |
64.4 |
68.4 |
6870 |
3×95+2×50/2+1×(6LWL) |
68.7 |
72.7 |
7860 |
3×120+2×70/2+1×(6LWL) |
73.8 |
77.8 |
9350 |
3×150+2×70/2+1×(6LWL) |
77.5 |
81.5 |
10630 |
3×185+2×95/2+1×(6LWL) |
80.5 |
84.5 |
12040 |
3×240+2×120/2+1×(6LWL) |
88.5 |
93.5 |
15070 |
3×300+2×150/2+1×(6LWL) |
94.7 |
99.7 |
17780 |
