屏蔽螺旋电缆 (热塑性聚酯弹性体（TPE-E）/聚氨酯（PUR））
应用:
TPE-E/PUR 屏蔽螺旋电缆应用于照明行业，机械，电动工具，建筑行业，移动设备等，适合使用在需要使用半导体屏蔽控制电缆部门。

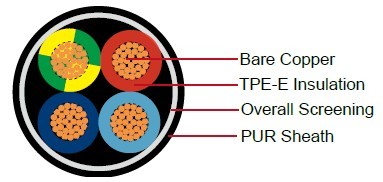

结构:
导体：绞合裸铜导体，符合 DIN VDE 0295 与 IEC 60228 5类标准
芯绞合
全屏蔽
单芯绝缘：热塑性聚酯弹性体（ TPE-E）
单芯颜色编码：符合 VDE 0293 与 DIN 47100 标准
护套：聚氨酯（PUR）外护套
护套颜色：黑色（其他颜色与样式可根据客户要求）
特性:
额定温度：-25°C 到 +70°C
额定电压：
300V (到 0.14 mm²)
500V (到 0.25 mm²)
弹性系数：TPE/PUR 黑色约 1 : 4
测试电压：2000 V
尺寸和重量：
| AWG | 横截面积 | 封闭螺旋长度 | 单芯线缆直径 | 成缆外径 | 铜重量 |
| mm2 | mm | mm | mm | kg/km | |
| 26 | 2 x 0.14 | 300 | 3.80 | 13.60 | 30.60 |
| 26 | 2 x 0.14 | 400 | 3.80 | 13.60 | 39.60 |
| 26 | 2 x 0.14 | 500 | 3.80 | 13.60 | 48.60 |
| 26 | 2 x 0.14 | 1000 | 3.80 | 13.60 | 93.60 |
| 26 | 3 x 0.14 | 300 | 4.10 | 15.20 | 44.20 |
| 26 | 3 x 0.14 | 400 | 4.10 | 15.20 | 55.80 |
| 26 | 3 x 0.14 | 500 | 4.10 | 15.20 | 67.50 |
| 26 | 3 x 0.14 | 1000 | 4.10 | 15.20 | 135.00 |
| 26 | 4 x 0.14 | 300 | 4.60 | 16.20 | 47.60 |
| 26 | 4 x 0.14 | 400 | 4.60 | 16.20 | 61.60 |
| 26 | 4 x 0.14 | 500 | 4.60 | 16.20 | 75.60 |
| 26 | 4 x 0.14 | 1000 | 4.60 | 16.20 | 145.60 |
| 26 | 5 x 0.14 | 300 | 4.60 | 17.20 | 54.40 |
| 26 | 5 x 0.14 | 400 | 4.60 | 17.20 | 70.40 |
| 26 | 5 x 0.14 | 500 | 4.60 | 17.20 | 86.40 |
| 26 | 5 x 0.14 | 1000 | 4.60 | 17.20 | 166.40 |
| 26 | 6 x 0.14 | 300 | 5.20 | 19.40 | 64.60 |
| 26 | 6 x 0.14 | 400 | 5.20 | 19.40 | 83.60 |
| 26 | 6 x 0.14 | 500 | 5.20 | 19.40 | 102.60 |
| 26 | 6 x 0.14 | 1000 | 5.20 | 19.40 | 197.60 |
| 26 | 7 x 0.14 | 300 | 5.50 | 20.00 | 68.00 |
| 26 | 7 x 0.14 | 400 | 5.50 | 20.00 | 88.00 |
| 26 | 7 x 0.14 | 500 | 5.50 | 20.00 | 108.00 |
| 26 | 7 x 0.14 | 1000 | 5.50 | 20.00 | 208.00 |
| 26 | 8 x 0.14 | 300 | 5.60 | 20.20 | 74.80 |
| 26 | 8 x 0.14 | 400 | 5.60 | 20.20 | 96.80 |
| 26 | 8 x 0.14 | 500 | 5.60 | 20.20 | 118.80 |
| 26 | 8 x 0.14 | 1000 | 5.60 | 20.20 | 228.80 |
| 26 | 2 x 0.25 | 300 | 4.50 | 16.00 | 51.00 |
| 26 | 2 x 0.25 | 400 | 4.50 | 16.00 | 66.00 |
| 26 | 2 x 0.25 | 500 | 4.50 | 16.00 | 81.00 |
| 26 | 2 x 0.25 | 1000 | 4.50 | 16.00 | 156.00 |
| 26 | 4 x 0.25 | 300 | 5.00 | 18.00 | 74.80 |
| 26 | 4 x 0.25 | 400 | 5.00 | 18.00 | 96.80 |
| 26 | 4 x 0.25 | 500 | 5.00 | 18.00 | 118.80 |
| 26 | 4 x 0.25 | 1000 | 5.00 | 18.00 | 228.80 |
| 24 | 5 x 0.25 | 300 | 5.40 | 19.80 | 85.00 |
| 24 | 5 x 0.25 | 400 | 5.40 | 19.80 | 110.00 |
| 24 | 5 x 0.25 | 500 | 5.40 | 19.80 | 135.00 |
| 24 | 5 x 0.25 | 1000 | 5.40 | 19.80 | 260.00 |
| 24 | 6 x 0.25 | 300 | 5.70 | 20.40 | 102.00 |
| 24 | 6 x 0.25 | 400 | 5.70 | 20.40 | 132.00 |
| 24 | 6 x 0.25 | 500 | 5.70 | 20.40 | 162.00 |
| 24 | 6 x 0.25 | 1000 | 5.70 | 20.40 | 312.00 |
| 24 | 8 x 0.25 | 300 | 6.50 | 23.00 | 119.00 |
| 24 | 8 x 0.25 | 400 | 6.50 | 23.00 | 154.00 |
| 24 | 8 x 0.25 | 500 | 6.50 | 23.00 | 189.00 |
| 24 | 8 x 0.25 | 1000 | 6.50 | 23.00 | 364.00 |
| 24 | 12 x 0.25 | 300 | 7.10 | 26.20 | 170.00 |
| 24 | 12 x 0.25 | 400 | 7.10 | 26.20 | 220.00 |
| 24 | 12 x 0.25 | 500 | 7.10 | 26.20 | 270.00 |
| 24 | 12 x 0.25 | 1000 | 7.10 | 26.20 | 520.00 |
| 20 | 2 x 0.50 | 300 | 5.50 | 20.00 | 78.20 |
| 20 | 2 x 0.50 | 400 | 5.50 | 20.00 | 101.20 |
| 20 | 2 x 0.50 | 500 | 5.50 | 20.00 | 124.20 |
| 20 | 2 x 0.50 | 1000 | 5.50 | 20.00 | 239.20 |
| 20 | 4 x 0.50 | 300 | 5.80 | 21.60 | 153.00 |
| 20 | 4 x 0.50 | 400 | 5.80 | 21.60 | 198.00 |
| 20 | 4 x 0.50 | 500 | 5.80 | 21.60 | 243.00 |
| 20 | 4 x 0.50 | 1000 | 5.80 | 21.60 | 648.00 |
| 20 | 6 x 0.50 | 300 | 7.00 | 26.00 | 231.20 |
| 20 | 6 x 0.50 | 400 | 7.00 | 26.00 | 299.20 |
| 20 | 6 x 0.50 | 500 | 7.00 | 26.00 | 367.20 |
| 20 | 6 x 0.50 | 1000 | 7.00 | 26.00 | 707.20 |
| 20 | 8 x 0.50 | 300 | 8.00 | 29.00 | 289.00 |
| 20 | 8 x 0.50 | 400 | 8.00 | 29.00 | 374.00 |
| 20 | 8 x 0.50 | 500 | 8.00 | 29.00 | 459.00 |
| 20 | 8 x 0.50 | 1000 | 8.00 | 29.00 | 884.00 |
| 20 | 12 x 0.50 | 300 | 8.80 | 31.60 | 380.80 |
| 20 | 12 x 0.50 | 400 | 8.80 | 31.60 | 492.80 |
| 20 | 12 x 0.50 | 500 | 8.80 | 31.60 | 604.80 |
| 20 | 12 x 0.50 | 1000 | 8.80 | 31.60 | 1164.80 |
