Fire Retardant SWA 17 Conductors UV/Moisture Resistant PVC Sheahted Composite Cable

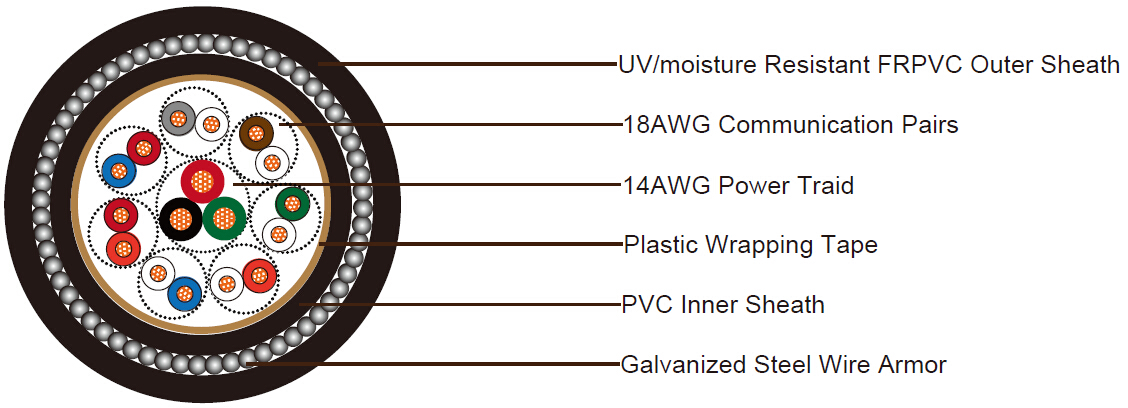

Construction:
18AWG Communication pairs
| Conductor | 18AWG(16/0.27mm) annealed copper |
| Insulation | PVC material. Thickness 0.8mm |
| Insulation Color | White & Blue, White & Orange, White & Green, White&Brown, White & Grey, Red & Blue, Red & Orange |
14AWG Power cable
| Conductor | 14AWG(19/0.38mm) annealed copper |
| Insulation | PVC material. Thickness 0.8mm |
| Insulation Color | Red, black and green |
Element Assembly
| Core make-up | Seven pairs and one triad are wrapped with plastic tape |
| Bedding | 1.2mm PVC compound |
| Armour | 1.6mm Galvanized steel wire |
| Sheath | 1.65mm UV/moisture resistant FRPVC, Overall diameter 33.0±1.5mm |
| Sheath Color | Black. |
