1xRG59 + 2x1x2x22AWG Data Cable Unarmored LSZH Sheathed Composite Cable

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.58mm Solid copper conductor
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 85%
Sheath LSZH sheath. Nominal outer diameter 6.2mm
Sheath Color Black

2x1x2x22AWG Shielded Twisted Pair (around coaxial cable)

Conductor 7/0.254mm
Insulation PE material.Thickness0.4mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 7/0.2mm drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm.
Sheath Color Black and Grey

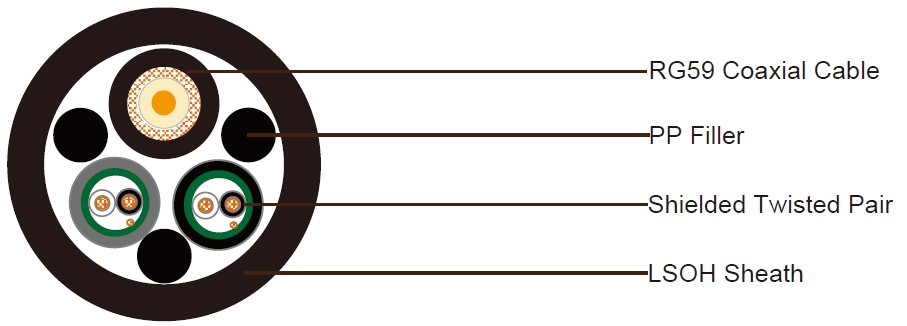

Element Assembly

Filler PP material
Outer Sheath LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 15.6mm
Sheath Color Black

Electrical and Physical Properties@20°C:

Coaxial Cable

  • Impedance: 75±3Ohm (@1MHz)
  • Nominal Attenuation: 8.2dB/100m @50MHz

Data Cable

  • Electrical Resistance: 48.4Ohm/km

Element Assembly

  • Min Bending Radius: 420mm
  • Operating Temperature: -35°C/+80°C

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
