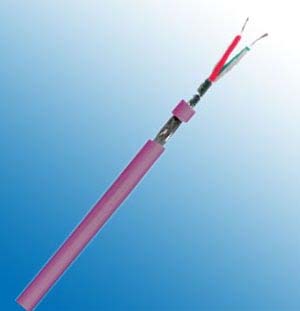

Profibus L2 Drag Chain (Track)
Applications
This system cable is used to interconnect L2-BUS components. This cable is an economical solution for the cell and field area. For the information exchange between different automation systems as well as for communication with the connected decentralized field units, serial field bus systems are used. The above mentioned types are suitable for drag chains (stranded).
Construction
| Type/Area of Application |
Drag Chain Applications |
| Cable Construction |
1x2x0.64 mm (stranded) |
| Inner Conductor Diameter |
Copper, bare (AWG 24/19) |
| Conductor Insulation |
Foam-skin-PE |
| Conductor Colors |
Red, green |
| Stranding Element |
2 conductors + 2 fillers stranded together |
| Shielding |
Polyester foil, aluminum-lined |
| Total Shielding |
Cu braid, tinned |
| Outer Jacket Material |
PUR |
| Outer Diameter |
8.0 mm ± 0.4 mm |
| Outer Jacket Color |
Violet |
Electrical Data
| Characteristic Impedance@3-20MHz |
150 Ω ± 10 Ω |
| Conductor Resistance |
82.0 Ohm/km max. |
| Insulation Resistance |
1.00 GOhm x km min. |
| Mutual Capacitance@1 KHz |
30.0 nF/km nom. |
| Working Voltage |
Max: 250V |
| Test Voltage |
1.5 KV |
| Attenuation |
9.6 |
kHz |
< |
3.0 |
dB/km |
| |
38.4 |
kHz |
< |
5.0 |
dB/km |
| |
4.0 |
MHz |
< |
25.0 |
dB/km |
| |
16.0 |
MHz |
< |
52.0 |
dB/km |
Technical Data
| Weight |
approximately 65.0 kg/km |
| Min. Bending Radius for Laying |
7.5 x OD mm |
| Operating Temperature Range, min. |
-40°C |
| Operating Temperature Range, max. |
+70°C |
