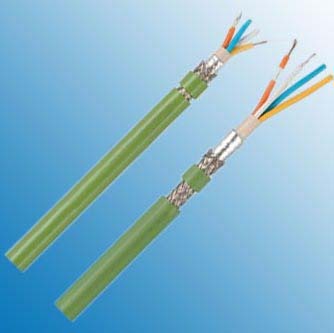

ProfiNet Type B+C


Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.


  ProfiNet Type B+C
Type/Area of Application Mobile Use Drag Chain Applications
Cable Construction 2x2x0.64 mm (stranded) 2x2x0.64 mm (stranded)
Inner Conductor Diamete Copper, tinned (AWG 22/7) Copper, tinned (AWG 22/7)
Conductor Insulation PE PE
Conductor Colors white, yellow, blue, orange white, yellow, blue, orange
Stranding Element Star quad Star quad
Wrapping Polyester foil over stranded bundle Polyester foil over stranded bundle
Shielding Polyester foil, aluminum-lined Polyester foil, aluminum-lined
Total Shielding Cu braid, tinned Cu braid, tinned
Inner Jacket Material PVC FRNC
Outer Jacket Material PVC PUR
Outer Diameter 6.5 mm ± 0.2 mm 6.5 mm ± 0.2 mm
Outer Jacket Color Green Green

Electrical Data

Characteristic Impedance@1-100 MHz 100 Ω ± 15 Ω
Conductor Resistance 60.0 Ohm/km max.
Insulation Resistance 0.50 GOhm x km min.
Mutual Capacitance 52.0 nF/km nom.
Working Voltage 300V
Test Voltage 1.5 KV
  10 MHz 6.0 dB/100m
Attenuation 16 MHz 7.6 dB/100m
  62.5 MHz 16 dB/100m
  100 MHz 21 dB/100m

Technical Data

Weight approximately 63.0 kg/km
Min. Bending Radius (Laying) 5 x OD mm
Operating Temp.Range, min. -40 °C
Operating Temp.Range, max. +70 °C
