Foundation Fieldbus ISA/SP-50 Type B

Applications

Foundation™ Field bus is used in intrinsically area,especially in the field of Process Automation.A single pair 22AWG Bi-Directional digital Fieldbus cable for type B applications (31.25 KBits/sec) are available in PVC, LSHF and SWA versions. Anti-termite and anti-vermin foundation fieldbus cable is also available.

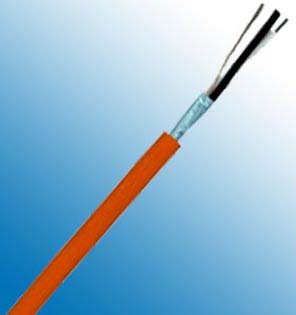

Construction

  Foundation Fieldbus ISA/SP-50 Type B
Type Foundation Fieldbus ISA/SP-50 Type B
Inner Conductor Tinned copper conductors 22AWG 0.34mm^2
Conductor Insulation Polyolefin/Foamed PE with skin PE
Stranding Element -
Shielding Aluminium /polyester foil
Drain Wire (22AWG) tinned copper
Outer Jacket Material PVC
Core Identification White & Black
Sheath Colour Orange

Electrical Data

Characteristic Impedance@31.25KHz 100 Ω±20 Ω
Conductor resistance 56.0Ohm/km @ 20°C
Working Voltage 300V
Test Voltage 1.5KV
Nominal attenuation 39KHz <3 dB/km

Technical Data

Weight: approximately 53 kg/km/ 213 kg/km(SWA)
Min. Bending Radius (Laying) 15 x OD mm
Operating Temp.Range, min. - 25 °C
Operating Temp.Range, max. +80 °C
