ASI-Bus

Applications

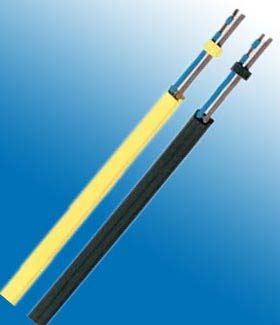

ASI is standardized Europe-wide in EN 50295 and internationally in IEC 62026-2.Network system for the lowest field level (binary sensors and actuators). Data and energy are transmitted between control unit and peripherals via an unscreened, geometrically coded two-core flat cable (pole safe). The conductor is contacted by piercing technology within the ASI-modules. The special outer jacket provides protection against bio-oil, grease, and refrigerant lubricants, and the cable is therefore even suitable for applications in wet surroundings, in machinery and plant construction, as well as in the machine tool and automotive industry.

Construction

  ASI-Bus
Type/Area of Application Actuator Sensor Interface
Cable Construction 2x1.5 mm2
Inner Conductor Diameter Copper, tinned
Conductor Insulation Rubber Compound /TPE
Conductor Colors Blue, brown
Stranding Element -
Shielding -
Shielding 2 -
Total Shielding -
Outer Jacket Material EPDM/PUR/ PVC/PE
Outer Jacket Color Yellow /Black

Electrical Data

Conductor Resistance 27.4 Ohm/km max.
Insulation Resistance 1.00 GOhm x km min.
Working Voltage Max: 300 V
Test Voltage 1.0 KV at 15 min.

Technical Data

Weight approximately 57.0 kg/km
Min. Bending Radius (Laying) 6 x OD mm
Operating Temp.Range, min. - 40 °C
Operating Temp.Range, max. +85 °C
