Thermosetting insulated, single-core, sheathed cables

Application and Description

These single core cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. Can be used in trunking or conduit, or may be surface mounted when used for earthing. and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

Cable Construction

  • Fine bare copper strands
  • Strands to IEC 60228 Cl-1 or 2
  • Thermosetting core insulation type EI5 or GP 8
  • Core identification: brown or blue
  • LSOH sheath, type LTS 4

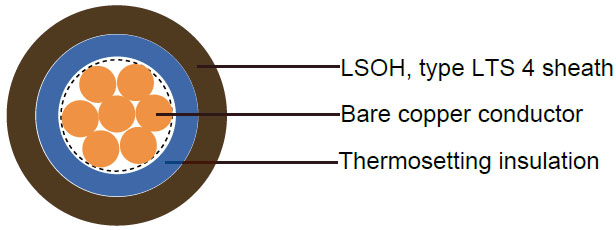

BS7211 Cable

Technical Characteristics

Working voltage 450/750v
Test voltage 2500 volts
Flexing bending radius 15 x Ø
Static bending radius 10 x Ø
Short circuit temperature +250 ºC
Flame retardant IEC 60332.1
Insulation resistance 10 MΩ x km
  Smoke density acc. to EN 50268 / IEC 61034
  Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
Flame test Flame-retardant acc. to EN 50265-2-1, IEC 60332.1

Cable Parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal thickness of insulation Nominal thickness of sheath Nominal overall diameter Nominal Weight Minimum insulation resistance at 90 °C
# x mm² mm mm mm kg/km MΩ·km
17 1 × 1.0 0.7 0.8 3.9-4.8 26 0.011
17(7/26) 1 × 1.0 0.7 0.8 4-4.9 31 0.011
16 1 × 1.5 0.7 0.8 4.2-5 34 0.011
16(7/24) 1 × 1.5 0.7 0.8 4.3-5.2 39 0.010
14 1 × 2.5 0.7 0.8 4.6-5.5 46 0.0092
14(7/22) 1 × 2.5 0.7 0.8 4.7-5.6 51 0.0084
12 1 × 4 0.7 0.8 5.0-6.0 65 0.0077
12(7/20) 1 × 4 0.7 0.9 5.3-6.4 72 0.0070
10 1 × 6 0.7 0.9 5.7-6.8 90 0.0065
10(7/18) 1 × 6 0.7 0.9 5.9-7.1 99 0.0059
8(7/16) 1 × 10 0.7 0.9 6.7-8.1 141 0.0047
6(7/14) 1 × 16 0.7 0.9 7.6-9.2 205 0.0039
4(7/12) 1 × 25 0.9 1.0 9.4-11.4 318 0.0039
2(7/10) 1 × 35 0.9 1.1 10.6-12.8 482 0.0034
