TXL
Applications
This XLPE insulated single-core cable is used in automotive applications where higher heat resistance, small diameter and minimal weight is required.

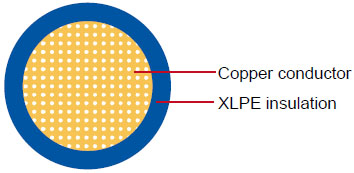

Construction
| Conductor |
Soft-annealed copper according to ASTM B |
| Insulation |
Polyethylene crosslinked (XLPE) |
| Standard Compliance |
SAE J1128 |
Technical Parameters
Operating temperature: –40 °C to +105 °C
| Conductor |
Insulation |
Cable |
| Size |
Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Thickness Wall min. |
Thickness Wall nom. |
Overall Diameter max. |
Weight approx. |
| AWG |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
kg/km |
| 22 |
1 x 0.35 |
7/0.25 |
0.76 |
0.28 |
0.40 |
1.70 |
6 |
| 20 |
1 x 0.50 |
7/0.32 |
0.97 |
0.28 |
0.40 |
1.90 |
8 |
| 20 |
1 x 0.50 |
19/0.19 |
0.95 |
0.28 |
0.40 |
1.90 |
8 |
| 18 |
1 x 0.80 |
16/0.25 |
1.17 |
0.28 |
0.40 |
2.20 |
11 |
| 18 |
1 x 0.80 |
19/0.23 |
1.17 |
0.28 |
0.40 |
2.20 |
11 |
| 16 |
1 x 1.00 |
19/0.28 |
1.45 |
0.28 |
0.40 |
2.40 |
15 |
| 14 |
1 x 2.00 |
19/0.36 |
1.80 |
0.28 |
0.40 |
2.70 |
22 |
| 12 |
1 x 3.00 |
19/0.45 |
2.29 |
0.32 |
0.46 |
3.30 |
34 |
| 10 |
1 x 5.00 |
19/0.57 |
2.87 |
0.35 |
0.50 |
4.00 |
53 |
| 10 |
1 x 5.00 |
100/0.26 |
3.00 |
0.35 |
0.45 |
3.90 |
53 |
| 8* |
1 x 8.00 |
49/0.46 |
4.06 |
0.39 |
0.55 |
4.90 |
85 |
*For SAE J1128 applications only
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
