GXL
Applications
This XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.
Construction

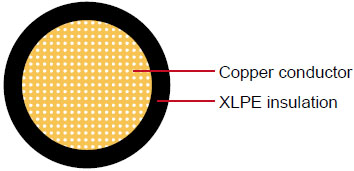

| Conductor |
Soft-annealed copper according to ASTM B3 |
| Insulation |
Polyethylene crosslinked (XLPE) |
| Standard Compliance |
SAE J1128 |
Technical Parameters
Operating temperature: –40 °C to +125 °C
| Conductor |
Insulation |
Cable |
| Size |
Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Thickness Wall min. |
Thickness Wall nom. |
Overall Diameter max. |
Weight approx. |
| AWG |
mm2 |
No./mm |
mm |
mm |
mm |
mm |
kg/km |
| 20 |
1 x 0.50 |
19/0.20 |
0.97 |
0.41 |
0.58 |
2.40 |
9 |
| 18 |
1 x 0.80 |
19/0.23 |
1.17 |
0.41 |
0.58 |
2.50 |
12 |
| 18 |
1 x 0.80 |
16/0.25 |
1.17 |
0.41 |
0.58 |
2.50 |
12 |
| 16 |
1 x 1.00 |
19/0.24 |
1.45 |
0.41 |
0.58 |
2.90 |
17 |
| 14 |
1 x 2.00 |
19/0.36 |
1.80 |
0.41 |
0.58 |
3.20 |
25 |
| 12 |
1 x 3.00 |
19/0.45 |
2.29 |
0.46 |
0.66 |
3.80 |
38 |
| 10 |
1 x 5.00 |
19/0.57 |
2.87 |
0.56 |
0.79 |
4.70 |
58 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
