FLYZ
Applications
This PVC insulated multi-cores cable is used in internal wiring in automobile where high flexibility, thermo and mechanical strength are required.

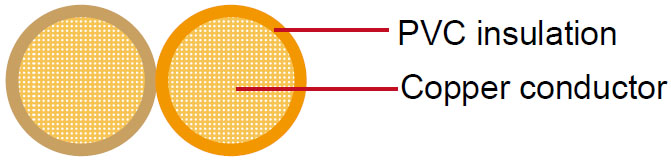

Construction
| Conductor |
Cu-ETP1 bare according to DIN EN13602 |
| Insulation |
Plasticized (PVC) |
| Standard Compliance |
ISO 6722 |
Technical Parameters
Operating temperature: –25 °C to +90 °C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20°C max. |
Thickness Wall nom. |
Diameter of Core |
Diameter Width |
Diameter Height |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
mm |
kg/km |
| 2 x0.50 |
16/0.21 |
1.00 |
37.10 |
0.50 |
2.10 |
4.40±0.20 |
2.10±0.15 |
20 |
| 2 x0.75 |
24/0.21 |
1.20 |
24.70 |
0.60 |
2.35 |
4.70±0.30 |
2.35±0.15 |
23 |
| 2 x1.00 |
32/0.20 |
1.50 |
19.50 |
0.60 |
2.55 |
5.10±0.30 |
2.60±0.15 |
32 |
| 2 x1.50 |
48/0.26 |
1.70 |
12.70 |
0.60 |
2.80 |
5.60±0.30 |
2.80±0.15 |
39 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
