FLYW
Applications
This PVC insulated single-core wire is used for automobiles, motorcycles and other motor vehicles. It has good heat resistance.

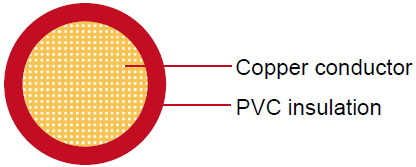

Construction
| Conductor |
Cu-ETP1 bare according to DIN EN13602 |
| Insulation |
PVC |
| Standard Compliance |
ISO 6722 |
Technical Parameters
Operating temperature: –40°C to 105°C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20°C max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
| 1x0.50 |
16 /0.20 |
1.00 |
37.10 |
0.48 |
2.00 |
2.30 |
8 |
| 1x0.75 |
24/0.20 |
1.20 |
24.70 |
0.48 |
2.20 |
2.50 |
11 |
| 1x1.00 |
32/0.20 |
1.35 |
18.50 |
0.48 |
2.40 |
2.70 |
15 |
| 1x1.50 |
30/0.25 |
1.70 |
12.70 |
0.48 |
2.70 |
3.00 |
20 |
| 1x2.50 |
50/0.25 |
2.20 |
7.60 |
0.56 |
3.30 |
3.60 |
32 |
| 1x4.00 |
56/0.31 |
2.75 |
4.71 |
0.64 |
4.00 |
4.40 |
48 |
| 1x6.00 |
84/0.31 |
3.30 |
3.14 |
0.64 |
4.60 |
5.00 |
68 |
| 1x10.00 |
80/0.40 |
4.50 |
1.82 |
0.80 |
6.00 |
6.50 |
117 |
| 1x16.00 |
126/0.40 |
5.20 |
1.16 |
0.80 |
8.00 |
8.30 |
193 |
| 1x25.00 |
196/0.40 |
6.50 |
0.70 |
1.04 |
10.10 |
10.40 |
274 |
| 1x35.00 |
276/0.40 |
7.70 |
0.50 |
1.04 |
11.30 |
11.60 |
397 |
| 1x50.00 |
396/0.40 |
9.20 |
0.30 |
1.20 |
13.20 |
13.50 |
547 |
| 1x70.00 |
556/0.40 |
11.00 |
0.20 |
1.20 |
15.20 |
15.50 |
769 |
| 1x95.00 |
741/0.40 |
14.80 |
0.20 |
1.28 |
17.00 |
18.00 |
990 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
