FLR13Y
Applications
This TPE-E insulated single-core cable is used for automotive industry. It has good mechanical and thermal properties and excellent resistance to aggressive media.

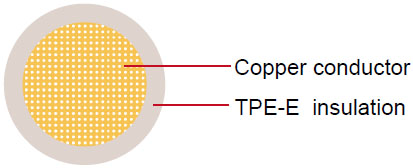

Construction
| Conductor |
Cu-ETP1 bare according to DIN EN13602 |
| Insulation |
Thermoplastic elastomeric on polyester basis (TPE-E) |
| Standard Compliance |
ISO 6722 Class B |
Technical Parameters
Operating temperature: –40 °C to +150 °C
|
Conductor |
Insulation |
Cable |
| Nominal Cross-section |
No. and Dia. of Wires |
Diameter max. |
Electrical Resistance at 20°C max. |
Thickness Wall nom. |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
mm |
mΩ/m |
mm |
mm |
mm |
kg/km |
| 1x0.50 |
19/0.19 |
1.00 |
37.10 |
0.30 |
1.50 |
1.70 |
6 |
| 1x0.75 |
19/0.23 |
1.20 |
24.70 |
0.30 |
1.70 |
1.90 |
9 |
| 1x1.00 |
19/0.26 |
1.35 |
18.50 |
0.30 |
1.90 |
2.10 |
11 |
| 1x1.50 |
19/0.32 |
1.70 |
12.70 |
0.30 |
2.20 |
2.40 |
16 |
| 1x2.00 |
19/0.38 |
2.00 |
9.31 |
0.30 |
2.40 |
2.70 |
22 |
| 1x2.50 |
19/0.41 |
2.20 |
7.60 |
0.35 |
2.70 |
3.00 |
25 |
| 1x4.00 |
56/0.31 |
2.75 |
4.71 |
0.40 |
3.40 |
3.70 |
40 |
| 1x6.00 |
84/0.31 |
3.30 |
3.10 |
0.40 |
4.00 |
4.30 |
60 |
*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
