FL6Y2G
Applications
This FEP insulated multi-cores cable is used for automobiles.

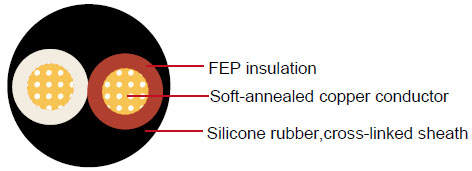

Construction
| Conductor |
Cu-ETP1 according to DIN EN 13602 |
| Insulation |
Fluorinated ethylene propylene(FEP) insulation |
| Sheath |
Siliconne rubber,cross-linked according to ISO 14572 class F |
| Standard Compliance |
ISO 6722 Class F |
Technical Parameters
Operating temperature: –40°C to +210°C
|
Conductor |
Insulation |
Cable |
| Nominal cross-section |
No. andDia. of Wires |
Diameter max. |
Electrical resistance at 20°C max. |
Thickness Wall nom. |
Sheath Thickness |
Overall Diameter min. |
Overall Diameter max. |
Weight approx. |
| mm2 |
No./mm |
(mm) |
mΩ/m |
(mm) |
(mm) |
mm |
mm |
kg/km |
| 2x0.35 |
12/0.21 |
0.8 |
52 |
0.4 |
0.53 |
4.6 |
5 |
32 |
| 2x0.25 |
24/0.16 |
0.7 |
86.5 |
0.4 |
0.53 |
3.4 |
3.8 |
24 |
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
