AVSSX/AESSX
Applications
This XLPVC (XLPE) insulated single-core cable is used in electric system for automobile.

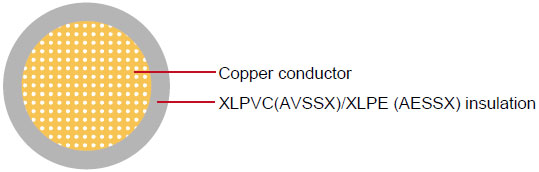

Construction
 |
| Conductor | Cu-ETP1 bare or tinned according to JIS C3102 |
|---|---|
| Insulation | XLPVC (AVSSX) |
| XLPE (AESSX) | |
| Standard Compliance | JASO D 608-92 |
Technical Parameters
| Operating temperature | –40 °C to +105 °C (AVSSX) |
| Operating temperature | –40 °C to +120 °C (AESSX) |
| Conductor | Insulation | Cable | |||||
|---|---|---|---|---|---|---|---|
| Nominal Cross-section | No. and | ||||||
