AVSS

Applications

This PVC insulated single-core cable is used for low voltage circuits in automobiles, vehicles and Motorcycles.

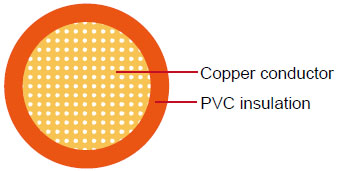

Construction

AVSS
Conductor Cu-ETP1 bare according to JIS 3120
Insulation PVC
Standard Compliance JASO D 611-94

Technical Parameters

Operating temperature –40 °C to +85 °C
Intermittent temperature 120°C
Conductor Insulation Cable
Nominal Cross-section NO. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1 x 0.30 7/0.26 0.80 50.20 0.30 1.40 1.50 5
1 x 0.50 7/0.32 1.00 32.70 0.30 1.60 1.70 7
1 x 0.85 19/0.24 1.20 21.70 0.30 1.80 1.90 10
1 x 1.25 19/0.29 1.50 14.90 0.30 2.10 2.20 14
1 x 0.3f 19/0.16 0.80 48.80 0.30 1.40 1.50 5
1 x 0.5f 19/0.19 1.00 34.60 0.30 1.60 1.70 7
1 x 0.75f 19/0.23 1.20 23.60 0.30 1.80 1.90 10
1 x 1.25f 37/0.21 1.50 14.60 0.30 2.10 2.20 14
1 x 2f 37/0.26 1.80 9.50 0.40 2.60 2.70 22

The "f" in the nominal size column indicates a flexible conductor with a finer wire diameter.
*Note: Other configurations, sizes, colors and length not specified herein areavailable upon request.
