Individual & Overall Screened Thermocouple Cable
Application
These cables are used with thermocouples for temperature measurements where hydrocarbon may be present.
Standards

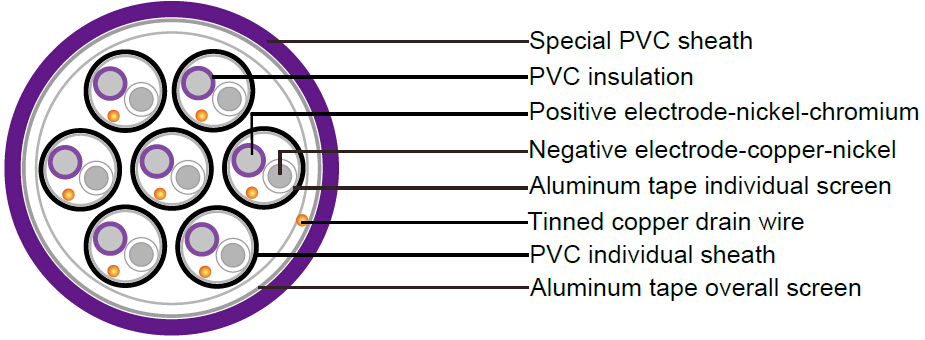

Cable Construction
Construction
| Conductor |
Metal according to thermocouple type |
| Insulation |
PVC |
| Individual screen |
Aluminum/polyester tape with tinned copper drain wire |
| Individual sheath |
PVC |
| Overall screen |
Aluminum/polyester tape with tinned copper drain wire |
| Sheath |
Special PVC. Color depends on thermocouple type |
Properties
| Flame retardance |
NFC 32070 C2, IEC 60332-1-2 |
| Operating voltage |
250V |
| Operating temperature |
-20~60°C |
| Max. conductor temperature in service |
70°C |
| Chemical resistance |
Aliphatic and aromatic hydrocarbon resistance |
| Conductor Size |
No. of Pairs |
Min. O.D. |
Max. O.D. |
Approx. Weight |
| mm2 |
|
mm |
mm |
kg/km |
| 0.5 solid |
3 |
11.1 |
12.8 |
180 |
| 0.5 solid |
7 |
15.4 |
17.7 |
335 |
| 0.5 solid |
12 |
19.8 |
22.8 |
545 |
| 0.5 solid |
19 |
24.6 |
28.1 |
825 |
| 0.5 solid |
27 |
28.9 |
33.2 |
1135 |
