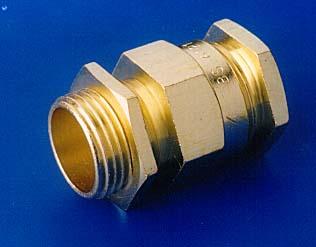

A2 Cable Glands to BS6121
Features: This Cable Glands are suitable for unarmoured plastic or rubber sheathed cables for indoor as well as outdoor applications
Application: Suitable for all types of SWA Cable
Materials: High Quality Brass
IP Rating: IP 66
Standards: BS 6121
A2 Cable Glands Dimensions
ISO Metric Thread Entry Size |
Dimensions |
Equivalent Imperial Thread Size Inches |
Minimum Entry Thread Length 'D' (mm) |
Assembled Length excl. Thread Entry 'E' |
Hexagon Size |
|
Bore 'A' |
Across corners 'F' |
|||||
Min mm |
Max mm |
|||||
20/16 |
3.5 |
8.7 |
3/4S |
10.0 |
23.0 |
24.5 |
20S |
5.9 |
11.7 |
3/4S |
10.0 |
21.8 |
26.5 |
20 |
6.4 |
14.0 |
3/4
|
10.0 |
23.0 |
30.0 |
25 |
10.0 |
20.0 |
1 |
10.0 |
25.0 |
40.5 |
32 |
19.0 |
26.3 |
1 1/4 |
10.0 |
30.0 |
46.0 |
40 |
25.0 |
32.2 |
1 1/2 |
15.0 |
31.5 |
56.0 |
50S |
31.5 |
38.2 |
2S
|
15.0 |
27.5 |
61.5 |
50 |
36.5 |
44.1 |
2
|
15.0 |
31.5 |
67.0 |
63S |
42.5 |
50.1 |
2 1/2S
|
15.0 |
30.0 |
78.5 |
63 |
49.5 |
56.0 |
2 1/2
|
15.0 |
31.5 |
83.5 |
75S |
54.5 |
62.0 |
3S
|
15.0 |
29.5 |
89.0 |
75 |
60.5 |
68.0 |
3
|
15.0 |
32.5 |
94.5 |
90 |
66.0 |
79.4 |
3 1/2 |
15.0 |
49.5 |
121.0 |
