Steel Wire Cable Tray-Brackets

Profile Brackets

Profile cantilever arms

  • Ordering Code For Tray Width Actual
    Width (W)    		 Ordering Code For Tray Width Actual
    Width (W)
    　 mm mm 　 mm mm
    Pre-galvanised steel CSPAG200278 200 278
    CSPAC100178 100 178 CSPAG300378 300 378
    CSPAC150228 150 228 CSPAG400478 400 478
    CSPAC200278 200 278 CSPAG450528 450 528
    CSPAC300378 300 378 Stainless steel
    CSPAC400478 400 478 CSPAS100178 100 178
    CSPAC450528 450 528 CSPAS150228 150 228
    Hot dip galvanised CSPAS200278 200 278
    CSPAG100178 100 178 CSPAS300378 300 378
    CSPAG150228 150 228 　 　 　

Profile roof cantilever arms

  • Ordering Code For Tray Width Actual
    Width (W)    		 Ordering Code For Tray Width Actual
    Width (W)
    　 mm mm 　 mm mm
    Pre-galvanised steel CSPRAG150228 150 228
    CSPRAC100178 100 178 CSPRAG200278 200 278
    CSPRAC150228 150 228 CSPRAG300378 300 378
    CSPRAC200278 200 278 CSPRAG400478 400 478
    CSPRAC300378 300 378 CSPRAG450528 450 528
    CSPRAC400478 400 478 Stainless steel
    CSPRAC450528 450 528 CSPRAS100178 100 178
    Hot dip galvanised CSPRAS150228 150 228
    CSPRAG100178 100 178 CSPRAS200278 200 278



Profile pendants

  • Ordering Code Pendant Depth (D) Ordering Code Pendant Depth (D)
    　 mm 　 mm
    Pre-galvanised steel Hot dip galvanised
    CSPPC300 300 CSPPG300 300
    CSPPC400 400 CSPPG400 400
    CSPPC500 500 CSPPG500 500

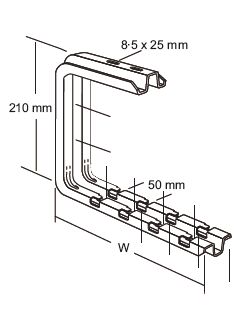

Profile trapeze hangers

Can also be used for wall and floor mounting

  • Ordering Code For Tray Width Actual Width
    (W)    		 Ordering Code For Tray Width Actual Width
    (W)
    　 mm mm 　 mm mm
    Pre-galvanised steel CSPHG500 400 500
    CSPHC150 50 150 CSPHG600 450 and 500 600
    CSPHC200 100 200 CSPHG1000 Cut to length 1000
    CSPHC300 150 and 200 300 CSPHG3000 Cut to length 3000
    CSPHC400 300 400 Stainless steel
    CSPHC500 400 500 CSPHS150 50 150
    CSPHC600 450 and 500 600 CSPHS200 100 200
    CSPHC1000 Cut to length 1000 CSPHS300 150 and 200 300
    CSPHC3000 Cut to length 3000 CSPHS400 300 400
    Hot dip galvanised CSPHS500 400 500
    CSPHG150 50 150 CSPHS600 450 and 500 600
    CSPHG200 100 200 CSPHS1000 Cut to length 1000
    CSPHG300 150 and 200 300 CSPHS3000 Cut to length 3000
    CSPHG400 300 400 　 　 　

Profile strut back plates

Profile strut back plates are used to fit profile supports to channel with M8 bolts and channel nuts. Type: pre-galvanised steel, hot dip galvanised or stainless steel.

Brackets for Pendant Installations

Pendants

  • Ordering Code Depth (D) Ordering Code Depth (D)
    　 mm 　 mm
    Pre-galvanised steel Hot dip galvanised
    CSPC300 300 CSPG300 300
    CSPC600 600 CSPG600 600
    CSPC1000 1000 CSPG1000 1000
    CSPC2000 2000 CSPG2000 2000
    CSPC3000 3000 CSPG3000 3000

Pendant mounting plate

Open slot on side enables pendant to be slid on to mounting plate and secured using tabs. Type: pre-galvanised steel.

Cantilever arms for pendant mounting

Suitable for pendant mounting only.

  • Ordering Code For Tray Width Actual Width (W) Depth (D)
    　 mm mm mm
    Pre-galvanised steel
    CSCAPC153073 100 153 73
    CSCAPC203073 150 203 73
    CSCAPC253087 200 253 87
    CSCAPC353087 300 353 87

Brackets

Cantilever arms

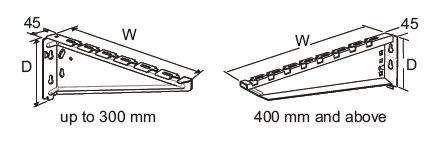

Suitable for wall mounting or pendant mounting using pins below (on tray widths up to 300 mm)

Ordering Code For Tray Width Actual Width (W) Depth (D)
　 mm mm mm
Pre-galvanised steel
CSCAC107085 50 107 85
CSCAC157085 100 157 85
CSCAC207124 150 207 124
CSCAC257139 200 257 139
CSCAC357139 300 357 139
CSCAC457138 400 457 138
CSCAC557138 500 557 138
CSCAC657138 600 657 138
Hot dip galvanised
CSCAG107085 50 107 85
CSCAG157085 100 157 85
CSCAG207124 150 207 124
CSCAG257139 200 257 139
CSCAG357139 300 357 139
CSCAG457138 400 457 138
CSCAG557138 500 557 138
CSCAG657138 600 657 138
Stainless steel
CSCAS107085 50 107 85
CSCAS157085 100 157 85
CSCAS207124 150 207 124
CSCAS257139 200 257 139
CSCAS357139 300 357 139
CSCAS457138 400 457 138
CSCAS557138 500 557 138
CSCAS657138 600 657 138

Pins

Use to mount standard cantilever arms to pendants. For tray widths up to 300 mm only.

  • Ordering Code Size
    Electroplated zinc
    CSP008075 8×75 mm
    Hot dip galvanised
    CSPG008075 8×75 mm
    Stainless steel
    CSPS008075 8×75 mm
