PVC-U Cable Tray

Straight Section

Conform to BS EN 61537, Length is 3 m.

Perforated

Ordering

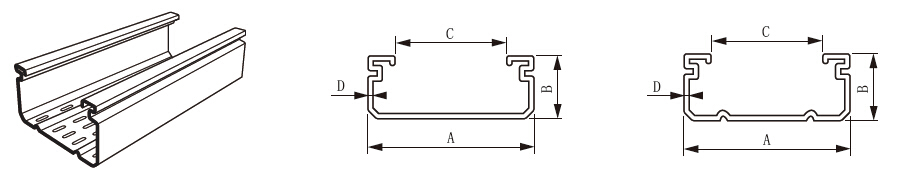

Code		 Width Depth Perforation Slot
Size		 A B C D
　 mm mm mm×mm mm mm mm mm
CP075050 75 50 9×25 and 7×25 75 50 32.4 2.1
CP100050 100 50 9×25 and 7×25 100 50 57 2.3
CP150050 150 50 9×25 and 7×25 150 50.2 106.6 2.6
CP200050 200 50 9×25 and 7×25 200 50 136.6 2.5
CP300050 300 50 9×25 and 7×25 300 52 232.6 3.5
CP400050 400 50 9×25 and 7×25 400 53 330.6 4
CP075075 75 75 9×25 and 7×25 75 75 32 2.3
CP100075 100 75 9×25 and 7×25 100 75 57 2.3
CP150075 150 75 9×25 and 7×25 150 75.3 106.2 2.7
CP200075 200 75 9×25 and 7×25 200 75 138.8 2.8
CP300075 300 75 9×25 and 7×25 300 77 234.4 3.8
CP400075 400 75 9×25 and 7×25 400 77.8 332.8 4.2
CP200100 200 100 9×25 and 7×25 200 100 130 3.8
CP300100 300 100 9×25 and 7×25 300 100.4 210 4
CP400100 400 100 9×25 and 7×25 400 101.4 300 4.5
CP500100 500 100 9×25 and 7×25 500 101.4 370 4.5
CP600100 600 100 9×25 and 7×25 600 102 470 4.8

Couplers

  • Ordering Code Width Depth
    　 mm mm
    CPC150050 For 75~150 50
    CPC400050 For 200~400 50
    CPC150075 For 75~150 75
    CPC400075 For 200~400 75
    CPC600100 For 200~600 100

Covers

  • Ordering Code Width Depth
    　 mm mm
    CPC150050 For 75~150 50
    CPC400050 For 200~400 50
    CPC150075 For 75~150 75
    CPC400075 For 200~400 75
    CPC600100 For 200~600 100

Fittings

Flat 90° bends

  • Ordering Code Width Depth Ordering Code Width Depth
    　 mm mm 　 mm mm
    CPFB075050 75 50 CPFB200075 200 75
    CPFB100050 100 50 CPFB300075 300 75
    CPFB150050 150 50 CPFB400075 400 75
    CPFB200050 200 50 CPFB200100 200 100
    CPFB300050 300 50 CPFB300100 300 100
    CPFB400050 400 50 CPFB400100 400 100
    CPFB075075 75 75 CPFB500100 500 100
    CPFB100075 100 75 CPFB600100 600 100
    CPFB150075 150 75 　 　 　

Flat 90° bends with cover

  • Ordering Code Width Depth Ordering Code Width Depth
    　 mm mm 　 mm mm
    CPFBC075050 75 50 CPFBC200075 200 75
    CPFBC100050 100 50 CPFBC300075 300 75
    CPFBC150050 150 50 CPFBC400075 400 75
    CPFBC200050 200 50 CPFBC200100 200 100
    CPFBC300050 300 50 CPFBC300100 300 100
    CPFBC400050 400 50 CPFBC400100 400 100
    CPFBC075075 75 75 CPFBC500100 500 100
    CPFBC100075 100 75 CPFBC600100 600 100
    CPFBC150075 150 75 　 　 　

Inside 90° risers

  • Ordering Code Width Depth Ordering Code Width Depth
    　 mm mm 　 mm mm
    CPIR075050 75 50 CPIR200075 200 75
    CPIR100050 100 50 CPIR300075 300 75
    CPIR150050 150 50 CPIR400075 400 75
    CPIR200050 200 50 CPIR200100 200 100
    CPIR300050 300 50 CPIR300100 300 100
    CPIR400050 400 50 CPIR400100 400 100
    CPIR075075 75 75 CPIR500100 500 100
    CPIR100075 100 75 CPIR600100 600 100
    CPIR150075 150 75 　 　 　

Inside 90° risers with cover

  • Ordering Code Width Depth Ordering Code Width Depth
    　 mm mm 　 mm mm
    CPIRC075050 75 50 CPIRC200075 200 75
    CPIRC100050 100 50 CPIRC300075 300 75
    CPIRC150050 150 50 CPIRC400075 400 75
    CPIRC200050 200 50 CPIRC200100 200 100
    CPIRC300050 300 50 CPIRC300100 300 100
    CPIRC400050 400 50 CPIRC400100 400 100
    CPIRC075075 75 75 CPIRC500100 500 100
    CPIRC100075 100 75 CPIRC600100 600 100
    CPIRC150075 150 75 　 　 　

Outside 90° risers

  • Ordering Code Width Depth Ordering Code Width Depth
    　 mm mm 　 mm mm
    CPOR075050 75 50 CPOR200075 200 75
    CPOR100050 100 50 CPOR300075 300 75
    CPOR150050 150 50 CPOR400075 400 75
    CPOR200050 200 50 CPOR200100 200 100
    CPOR300050 300 50 CPOR300100 300 100
    CPOR400050 400 50 CPOR400100 400 100
    CPOR075075 75 75 CPOR500100 500 100
    CPOR100075 100 75 CPOR600100 600 100
    CPOR150075 150 75 　 　 　

Outside 90° risers with cover

  • Ordering Code Width Depth Ordering Code Width Depth
    　 mm mm 　 mm mm
    CPORC075050 75 50 CPORC200075 200 75
    CPORC100050 100 50 CPORC300075 300 75
    CPORC150050 150 50 CPORC400075 400 75
    CPORC200050 200 50 CPORC200100 200 100
    CPORC300050 300 50 CPORC300100 300 100
    CPORC400050 400 50 CPORC400100 400 100
    CPORC075075 75 75 CPORC500100 500 100
    CPORC100075 100 75 CPORC600100 600 100
    CPORC150075 150 75 　 　 　

End caps

  • Ordering Code Width Depth Ordering Code Width Depth
    　 mm mm 　 mm mm
    CPE075050 75 50 CPE200075 200 75
    CPE100050 100 50 CPE300075 300 75
    CPE150050 150 50 CPE400075 400 75
    CPE200050 200 50 CPE200100 200 100
    CPE300050 300 50 CPE300100 300 100
    CPE400050 400 50 CPE400100 400 100
    CPE075075 75 75 CPE500100 500 100
    CPE100075 100 75 CPE600100 600 100
    CPE150075 150 75 　 　 　

Tee kits

  • Ordering Code Applicable Range Ordering Code Applicable Range
    CPT075075 For 75×50 and 75×75 CPT200100 For 200×100
    CPT100075 For 100×50 and 100×75 CPT300100 For 300×100
    CPT150075 For 150×50 and 150×75 CPT400100 For 400×100
    CPT200075 For 200×50 and 200×75 CPT500100 For 500×100
    CPT300075 For 300×50 and 300×75 CPT600100 For 600×100
    CPT400075 For 400×50 and 400×75 　 　

Tee Intersection

  • Ordering Code Applicable Range
    CPTI050 For 50 mm depth tray
    CPTI075 For 75 mm depth tray
    CPTI100 For 100 mm depth tray

Divider

  • Ordering Code Applicable Range
    CPTI050 For 50 mm depth tray
    CPTI075 For 75 mm depth tray
    CPTI100 For 100 mm depth tray
