Channel Support Systems - Cantilever Arms
Overview
In addition to the cantilever arms listed, there are many other specialist support brackets for use with cable tray or cable ladder.
Cantilever Arms

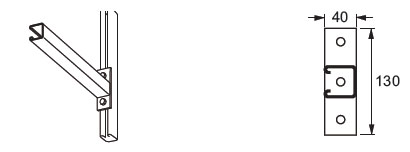

Requires only one bolt for quick fixing and is used with open face at the top.
| Arm Length | Unit Weight |
|---|---|
| mm | kg |
| 150 | 0.64 |
| 225 | 0.85 |
| 300 | 1.03 |
| 450 | 2.42 |
| 600 | 1.81 |
| 750 | 2.2 |
| 900 | 2.6 |
Cantilever Arms, Universal

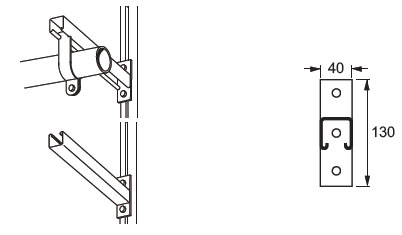

Two bolt fixing. These arms can be used with open face at the top or bottom.
| Arm Length | Unit Weight |
|---|---|
| mm | kg |
| 150 | 0.64 |
| 225 | 0.85 |
| 300 | 1.03 |
| 450 | 1.42 |
| 600 | 1.81 |
| 750 | 2.2 |
| 900 | 2.6 |
Cantilever Arms, Side

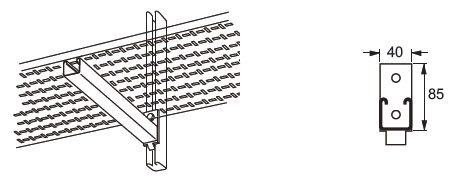

Two bolt fixing. These arms can be used with open face on the left or right.
| Arm Length | Unit Weight |
|---|---|
| mm | kg |
| 150 | 0.64 |
| 225 | 0.85 |
| 300 | 1.03 |
| 450 | 1.42 |
| 600 | 1.81 |
| 750 | 2.2 |
| 900 | 2.6 |
Cantilever Arms, Double Channel

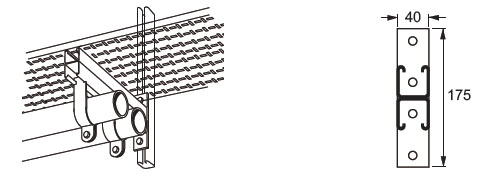

Two bolt fixing with extra support. Open face top and bottom.
| Arm Length | Unit Weight |
|---|---|
| mm | kg |
| 150 | 1.14 |
| 225 | 1.68 |
| 300 | 2.02 |
| 450 | 2.9 |
| 600 | 3.78 |
| 750 | 4.66 |
| 900 | 5.6 |
Cantilever Arm Bracket

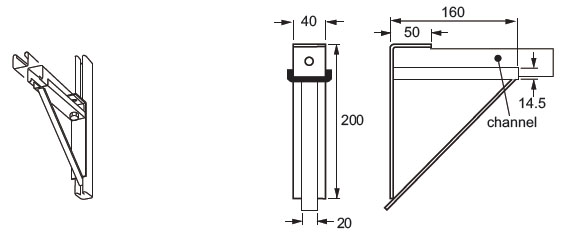

These brackets are used to provide extra support to a horizontal run of channel.
