MIL-W-22759/91

Application and description:

This PTFE tape insulation single-core MIL-W-22759/91 wires are used for MIL-Spec and Aerospace, these cables are light weight, high-performance, aerospace hook up wires with insulation composed of PTFE/polyimide/PTFE tape and PTFE tape. These wires are designed for aerospace and other applications which require excellent thermal stability and light weight

Construction Details:

A PTFE/K/PTFE layer construction

Construction：

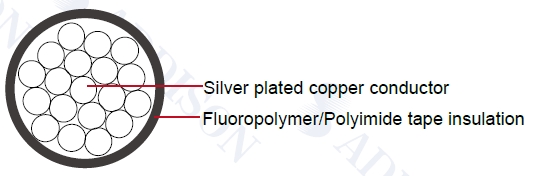

Conductor: Stranded silver plated copper conductor

Insulation: Fluoropolymer/Polyimide Tape Insulation

Insulating Material Thickness: 0.30mm

Technical Parameters:

Temperature Rating: 200°C
 Voltage Rating: 600 volts

MIL-Spec Wire

SAE AS22759/91

Color Code: MIL-STD-681

AWG Size	Conductor Stranding	Conductor Diam.		Conductor Diam.		Min O.D.		Max O.D.		Approx LBS/MFT
		Min		max
		In	Mm	In	mm	(in)	mm	(in)	mm
26	19/38	0.0175	0.44	0.0194	0.49	0.03	0.762	0.034	0.864	1.43
24	19/36	0.0225	0.57	0.0244	0.62	0.034	0.864	0.038	0.965	1.93
22	19/34	0.0285	0.72	0.0304	0.77	0.04	1.016	0.043	1.092	2.85
20	19/32	0.0365	0.93	0.0384	0.98	0.048	1.219	0.051	1.295	4.38
18	19/30	0.0455	1.16	0.0484	1.23	0.056	1.422	0.06	1.524	6.6
16	19/29	0.0515	1.31	0.0544	1.38	0.063	1.6	0.067	1.702	8.3
14	19/27	0.0645	1.64	0.0684	1.74	0.076	1.93	0.08	2.032	12.6
12	37/28	0.0835	2.12	0.0874	2.22	0.096	2.438	0.1	2.54	19.6
10	37/26	0.106	2.69	0.11	2.79	0.119	3.023	0.123	3.124	30.6
