MIL-W-22759/90
Application and description:
This PTFE tape insulation single-core MIL-W-22759/90 wires are used for MIL-Spec and Aerospace, these cables are normal weight, high-performance, aerospace hook up wires with insulation composed of PTFE/polyimide/PTFE tape and PTFE tape. These wires are designed for aerospace and other applications which require excellent thermal stability and high break strength
Construction Details:
A PTFE/K/PTFE layer construction
Construction：

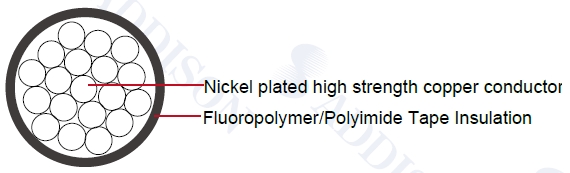

Conductor: Stranded nickel plated high strength copper alloy conductor
Insulation: Fluoropolymer/Polyimide Tape Insulation
Insulating Material Thickness: 0.4 mm
Technical Parameters:
Temperature Rating: 260°C
Voltage Rating: 600 volts
MIL-Spec Wire
SAE AS22759/90
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
||||
Min |
max |
|||||||||
|
|
In |
Mm |
In |
mm |
(in) |
Mm |
(in) |
mm |
|
26 |
19/38 |
0.0175 |
0.44 |
0.0204 |
0.52 |
0.033 |
0.838 |
0.037 |
0.94 |
1.55 |
24 |
19/36 |
0.0225 |
0.57 |
0.0254 |
0.65 |
0.038 |
0.965 |
0.042 |
1.067 |
2.15 |
22 |
19/34 |
0.0285 |
0.72 |
0.0314 |
0.8 |
0.043 |
1.092 |
0.047 |
1.194 |
3 |
20 |
19/32 |
0.0365 |
0.93 |
0.0404 |
1.03 |
0.051 |
1.295 |
0.055 |
1.397 |
4.55 |
