Military Cable
MIL-W-22759/81
Application and description:
This PTFE tape insulation single-core MIL-W-22759/81 wires are used for MIL-Spec and Aerospace, these cables are light-weight, high-performance aerospace hook up wires with a dual-layer insulation of PTFE/polyimide/PTFE tape, covered with PTFE tape. These wires are designed for aerospace and other applications which require excellent thermal stability, light weight and high break strength.
Construction Details:
A PTFE/K/PTFE layer construction
Construction：

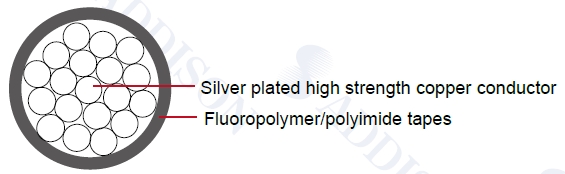

Conductor: Stranded silver plated high strength copper alloy conductor
Insulation: Light Weight Fluoropolymer/Polyimide Tape Insulation
Insulating Material Thickness: 0.30mm
Technical Parameters:
Temperature Rating: 200°C
Voltage Rating: 600 volts
MIL-Spec Wire
SAE AS22759/81
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
||||
Min |
max |
|||||||||
|
|
In |
Mm |
In |
Mm |
(in) |
Mm |
(in) |
mm |
|
26 |
19/38 |
0.0175 |
0.445 |
0.0204 |
0.518 |
0.03 |
0.762 |
0.034 |
0.864 |
1.43 |
24 |
19/36 |
0.0225 |
0.572 |
0.0244 |
0.62 |
0.034 |
0.864 |
0.038 |
0.965 |
1.93 |
22 |
19/34 |
0.0285 |
0.724 |
0.0314 |
0.798 |
0.04 |
1.016 |
0.043 |
1.092 |
2.85 |
20 |
19/32 |
0.0365 |
0.927 |
0.0395 |
1.003 |
0.048 |
1.219 |
0.051 |
1.295 |
4.38 |
