Military Cable

MIL-W-22759/80

Application and description:

This PTFE tape insulation single-core MIL-W-22759/80 wires are used for MIL-Spec and Aerospace, these cables are light-weight, high-performance aerospace hook up wires with a dual-layer insulation of PTFE/polyimide/PTFE tape, covered with PTFE tape. These wires are designed for aerospace and other applications which require excellent thermal stability, light weight and high break strength.

Construction Details:

A PTFE/K/PTFE layer construction

Construction：

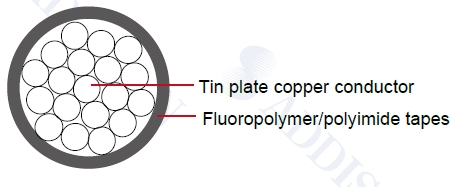

Conductor: Stranded tin plated copper conductor

Insulation: Light Weight Fluoropolymer/Polyimide Tape Insulation（PTFE）

Insulating Material Thickness: 0.30mm

Technical Parameters:

Temperature Rating: 150°C
 Voltage Rating: 600 volts

MIL-Spec Wire

SAE AS22759/80

Color Code: MIL-STD-681

AWG Size	Conductor Stranding	Conductor Diam.		Conductor Diam.		Min O.D.		Max O.D.		Approx LBS/MFT
		Min		max
		In	Mm	In	Mm	(in)	Mm	(in)	mm
26	19/38	0.0175	0.445	0.0204	0.518	0.03	0.762	0.034	0.864	1.43
24	19/36	0.0225	0.572	0.0244	0.62	0.034	0.864	0.038	0.965	1.93
22	19/34	0.0285	0.724	0.0314	0.798	0.04	1.016	0.043	1.092	2.85
20	19/32	0.0365	0.927	0.0394	1.001	0.048	1.219	0.051	1.295	4.38
18	19/30	0.0455	1.156	0.0494	1.255	0.056	1.422	0.06	1.524	6.6
16	19/29	0.0515	1.308	0.0554	1.407	0.063	1.6	0.067	1.702	8.3
14	19/27	0.0645	1.638	0.0694	1.763	0.076	1.93	0.08	2.032	12.6
12	37/28	0.0835	2.121	0.0894	2.271	0.096	2.438	0.1	2.54	19.6
10	37/26	0.106	2.692	0.112	2.845	0.119	3.023	0.123	3.124	30.6
