Military Cable
MIL-W-22759/3
Application and description:
This PTFE, FEP, and Glass insulated single-core MIL-W-22759/3 wires are used for MIL-Spec and Aerospace, government applications. These wires are used in aircraft engines and wherever abrasion.

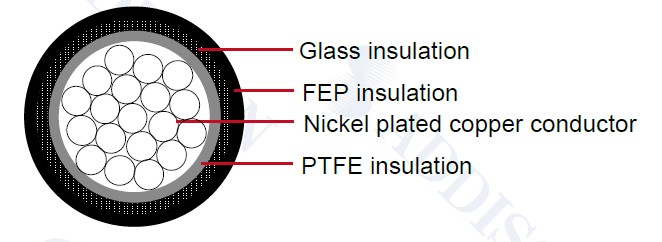

Construction Details:
The first layer is PTFE either as a wrapped tape or PTFE coated glass tape. The second layer is PTFE coated glass braid and finisher. The jacket FEP is either extruded or on larger wire sizes a tape; the FEP has to be fused.
Construction：
Conductor: Stranded nickel plated copper conductor
Insulation: PTFE, FEP, and Glass Insulation
Insulating Material Thickness: 1.0 mm to 3.2mm
Technical Parameters:
Temperature Rating: 260°C
Voltage Rating: 600 volts
SAE AS22759/3
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
||||
Min |
max |
|||||||||
|
|
In |
Mm |
In |
mm |
(in) |
mm |
(in) |
mm |
|
22 |
19/34 |
0.029 |
0.737 |
0.033 |
0.838 |
0.08 |
2.032 |
0.088 |
2.235 |
5.9 |
20 |
19/32 |
0.037 |
0.94 |
0.041 |
1.041 |
0.09 |
2.286 |
0.098 |
2.489 |
7.9 |
18 |
19/30 |
0.046 |
1.168 |
0.051 |
1.295 |
0.1 |
2.54 |
0.11 |
2.794 |
11 |
16 |
19/29 |
0.052 |
1.321 |
0.058 |
1.473 |
0.115 |
2.921 |
0.125 |
3.175 |
13.6 |
14 |
19/27 |
0.065 |
1.651 |
0.073 |
1.854 |
0.133 |
3.378 |
0.143 |
3.632 |
18.5 |
12 |
37/28 |
0.084 |
2.134 |
0.09 |
2.286 |
0.152 |
3.861 |
0.162 |
4.115 |
26.6 |
10 |
37/16 |
0.106 |
2.692 |
0.114 |
2.896 |
0.174 |
4.42 |
0.188 |
4.775 |
41.5 |
8 |
133/29 |
0.158 |
4.013 |
0.173 |
4.394 |
0.241 |
6.121 |
0.255 |
6.477 |
77.4 |
6 |
133/27 |
0.198 |
5.029 |
0.217 |
5.512 |
0.283 |
7.188 |
0.303 |
7.696 |
115 |
4 |
133/25 |
0.25 |
6.35 |
0.274 |
6.96 |
0.4 |
10.16 |
0.43 |
10.922 |
184 |
2 |
665/30 |
0.32 |
8.128 |
0.34 |
8.636 |
0.405 |
10.287 |
0.435 |
11.049 |
281 |
1 |
817/30 |
0.36 |
9.144 |
0.38 |
9.652 |
0.455 |
11.557 |
0.485 |
12.319 |
358 |
1/0 |
1045/30 |
0.395 |
10.033 |
0.425 |
10.795 |
0.495 |
12.573 |
0.535 |
13.589 |
436 |
2/0 |
1330/30 |
0.44 |
11.176 |
0.475 |
12.065 |
0.555 |
14.097 |
0.595 |
15.113 |
554 |
