MIL-W-22759/18

Application and description:

This ETFE insulated single-core MIL-W-22759/18 wires are used for MIL-Spec and Aerospace and other applications requiring light weight, tight diameter tolerances, and enhanced mechanical toughness. ETFE insulation also provides exceptional resistance to radiation and chemicals.

Construction Details:

ETFE is extruded

Construction：

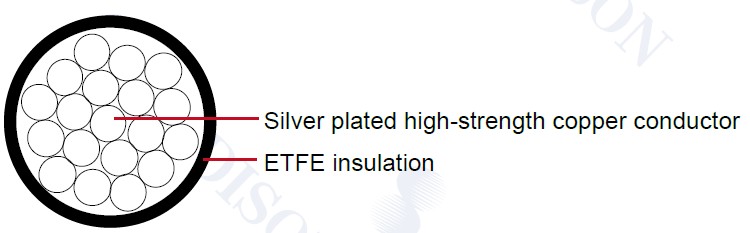

Conductor: Stranded tin plated copper conductor

Insulation: Extruded Thin Wall ETFE Insulation

Insulating Material Thickness: 0.15 mm

Technical Parameters:

Temperature Rating: 150°C
 Voltage Rating: 600 volts

SAE AS22759/18

Color Code: MIL-STD-681

AWG Size	Conductor Stranding	Conductor Diam.		Conductor Diam.		Min O.D.		Max O.D.		Approx LBS/MFT
		Min		max
		In	Mm	In	mm	(in)	Mm	(in)	mm
26	19/38	0.18	4.572	0.02	0.508	0.03	0.762	0.034	0.864	1.45
24	19/36	0.023	0.584	0.024	0.61	0.034	0.864	0.038	0.965	2.02
22	19/34	0.029	0.737	0.031	0.787	0.041	1.041	0.045	1.143	3.04
20	19/32	0.037	0.94	0.039	0.991	0.049	1.245	0.053	1.346	4.6
18	19/30	0.046	1.168	0.049	1.245	0.059	1.499	0.063	1.6	6.86
16	19/29	0.052	1.321	0.055	1.397	0.065	1.651	0.069	1.753	8.69
14	19/27	0.065	1.651	0.069	1.753	0.079	2.007	0.083	2.108	13.3
12	37/28	0.087	2.21	0.089	2.261	0.101	2.565	0.105	2.667	20.5
10	37/26	0.106	2.692	0.112	2.845	0.124	3.15	0.128	3.251	31.9
