Military Cable
MIL-W-22759/15
Application and description:
This FEP insulated single-core MIL-W-22759/15 wires are used for MIL-Spec and Aerospace.
Construction Details:
FEP is extruded
Construction：

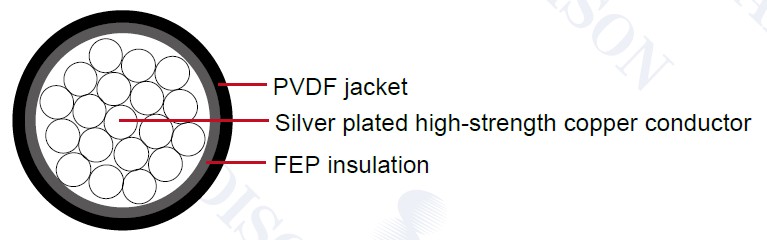

Conductor: Stranded silver plated high-strength copper alloy conductor
Insulation: Extruded FEP Insulation
Jacket: Clear PVDF Jacket
Insulating Material Thickness: 0.30 mm
Technical Parameters:
Temperature Rating: 135°C
Voltage Rating: 600 volts
SAE AS22759/15
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
||||
Min |
max |
|||||||||
|
|
In |
Mm |
In |
mm |
(in) |
Mm |
(in) |
mm |
|
26 |
19/38 |
0.018 |
0.457 |
0.02 |
0.508 |
0.035 |
0.889 |
0.039 |
0.991 |
1.75 |
24 |
19/36 |
0.023 |
0.584 |
0.026 |
0.66 |
0.04 |
1.016 |
0.044 |
1.118 |
2.42 |
22 |
19/34 |
0.029 |
0.737 |
0.33 |
8.382 |
0.045 |
1.143 |
0.051 |
1.295 |
3.59 |
20 |
19/32 |
0.037 |
0.94 |
0.041 |
1.041 |
0.053 |
1.346 |
0.059 |
1.499 |
5.22 |
