Military Cable
MIL-W-22759/14
Application and description:
This FEP insulated single-core MIL-W-22759/14 wires are used for MIL-Spec and Aerospace.
Construction Details:
FEP is extruded

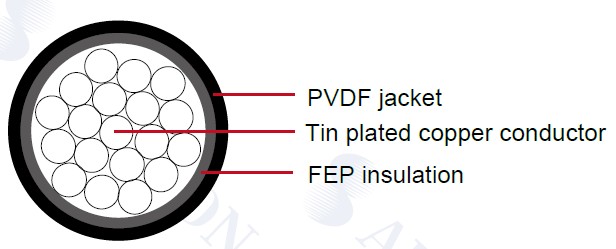

Construction：
Conductor: Stranded tin plated copper conductor
Insulation: Extruded FEP Insulation
Jacket: Clear PVDF Jacket
Insulating Material Thickness: 0.20 mm
Technical Parameters:
Temperature Rating: 135°C
Voltage Rating: 600 volts
SAE AS22759/14
Color Code: MIL-STD-681
AWG Size |
Conductor Stranding |
Conductor Diam. |
Conductor Diam. |
Min O.D. |
Max O.D. |
Approx LBS/MFT |
||||
Min |
max |
|||||||||
|
|
In |
Mm |
In |
mm |
(in) |
mm |
(in) |
mm |
|
26 |
19/38 |
0.018 |
0.457 |
0.02 |
0.508 |
0.035 |
0.889 |
0.039 |
0.991 |
1.8 |
24 |
19/36 |
0.023 |
0.584 |
0.024 |
0.61 |
0.04 |
1.016 |
0.044 |
1.118 |
2.47 |
22 |
19/34 |
0.0285 |
0.724 |
0.031 |
0.787 |
0.045 |
1.143 |
0.051 |
1.295 |
3.53 |
20 |
19/32 |
0.0365 |
0.927 |
0.039 |
0.991 |
0.053 |
1.346 |
0.059 |
1.499 |
5.13 |
18 |
19/30 |
0.0455 |
1.156 |
0.049 |
1.245 |
0.063 |
1.6 |
0.069 |
1.753 |
7.64 |
16 |
19/29 |
0.0515 |
1.308 |
0.055 |
1.397 |
0.067 |
1.702 |
0.075 |
1.905 |
9.34 |
14 |
19/27 |
0.0645 |
1.638 |
0.069 |
1.753 |
0.083 |
2.108 |
0.091 |
2.311 |
14.4 |
12 |
37/28 |
0.084 |
2.134 |
0.089 |
2.261 |
0.103 |
2.616 |
0.111 |
2.819 |
22.3 |
