1xRG59 + 3x2.5 Power cable + 2x2x24AWG RS485 + 1x2x18AWG Audio Cable SWB LSZH Sheathed Composite Cable

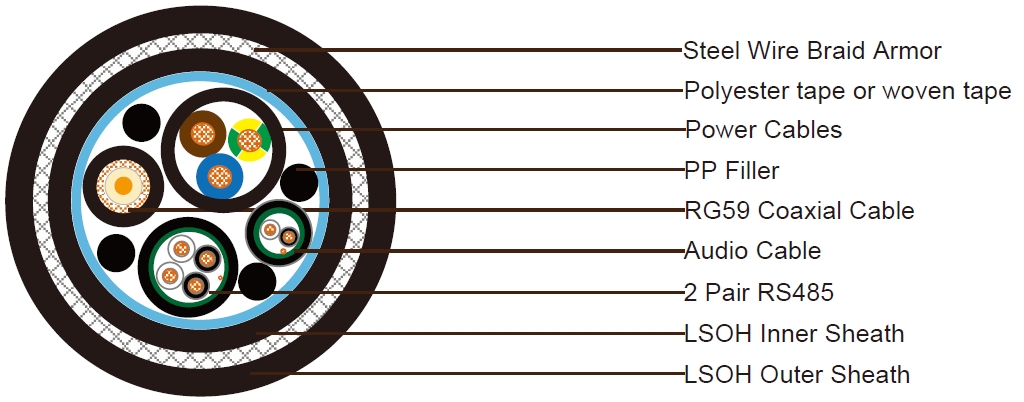

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable

Conductor 0.81mm Copper Covered Steel Wire
Insulation Polyethylene. Diameter 3.65mm.
Shield Bonded Al screen and braid of Al-Mg wire. Coverage:80%
Sheath LSZH sheath. Nominal outer diameter is 6.1mm
Sheath Color Black

24AWG RS485

Conductor 24AWG (7/0.2mm to IEC 60228 Class2  2 pairs
Insulation Polyethylene. Thickness 0.6mm
Shield Aluminum polyester tape
Drain Wire 24 AWG
Sheath LSZH sheath. Nominal outer diameter is 9.0mm
Sheath Color Black

3x2.5mm² Power Cable ( around coaxial cable)

Conductor 2.5mm² Stranded tinned copper wire.
Insulation XLPE. Thickness 0.7mm
Sheath LSZH sheath. Nominal outer diameter is 12.0mm
Sheath Color Black

18AWG Audio Cable

Conductor 1 pair 18AWG (16/0.254mm
Insulation Polyethylene.
Shield Aluminum polyester tape
Drain Wire 24 AWG
Sheath LSZH sheath. Nominal outer diameter is 6.5mm
Sheath Color Black

Element Assembly

Filler PP, PVC or PE
Wrapping Tape Polyester tape or woven tape
Inner Sheath Black LSZH, thickness 0.8-1.0mm
Armor Steel wire braid,coverage 95%
Outer Sheath LSZH, thickness 1.6- 1.8mm, nominal outer diameter is 24±2mm
Sheath Color Black
Cable Weight 730kg/km

Electrical and Physical Properties@20°C:

Coaxial Cable

  • Impedance: 75±3Ohm (@1MHz)
  • Nominal Attenuation: 6.72dB/100m @50MHz

RS485

  • Nominal Impedance: 120±10Ω
  • Nominal Conductor DC Resistance @20°C: 78.7 Ohm/km
  • Nominal Attenuation: 1MHz 2.3dB/100m

Power Cable

  • Electrical Resistance: 7.41Ohm/km
  • Insulation Resistance: ≥5500 MOhmxkm

Audio Cable

  • Electrical Resistance: 18.1Ohm/km
  • Insulation Resistance: ≥1.1 MOhm .km

Element Assembly

  • Min Bending Radius: 360mm
  • Operating Temperature: -35°C/+90°C

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
