Cat5e+3x2.5 Power Cable SWB LSZH Sheathed Fire Resistant & Mud Resistant Composite Cable

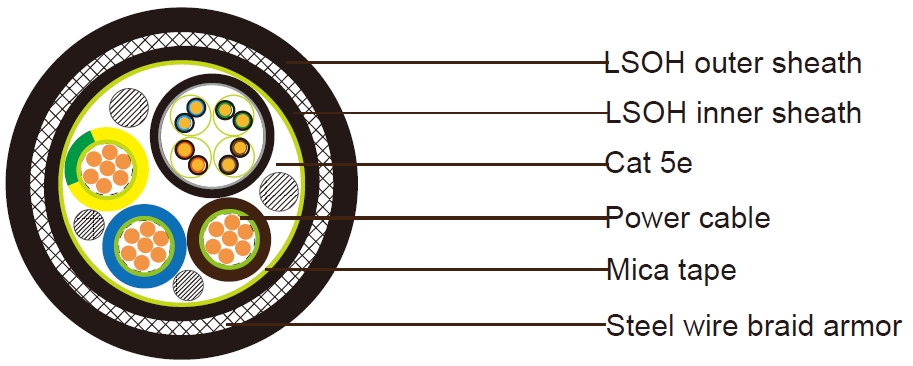

Construction:

Composite Cable

CAT5E 4x2x24AWG

Conductor Solid copper conductor
Insulation Polyethylene/Silicone Rubber
Fire Barrier Mica tape
Sheath FRLSZH sheath. Nominal outer diameter 9.5mm
Sheath Color Black and Grey

3x2.5mm² Power Cable

Conductor 2.5mm² wire
Fire Barrier Mica tape
Insulation XLPE. Nominal outer diameter 5.0mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP material if necessary
Fire Barrier Mica tape
Inner Sheath Black FRLSZH, thickness 1.0mm
Armor Galvanized steel wire braid, coverage 95%
Outer Sheath FRLSZH, thickness 1.6mm, nominal outer diameter 23.0±1.5mm
Sheath Color Black

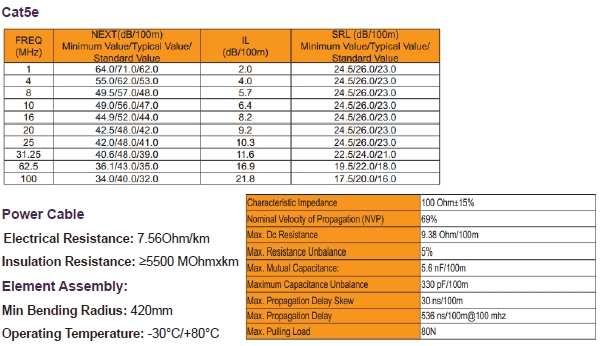

Electrical and Physical Properties@20°C:

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
  • Fire Resistant: IEC60332-21
  • Mud Resistant & other properties could be met upon request
