1xRG59 + 3x1.5 Power Cable + 6x1x2x24AWG Shielded Control Cable SWB LSZH Sheathed Composite Cable

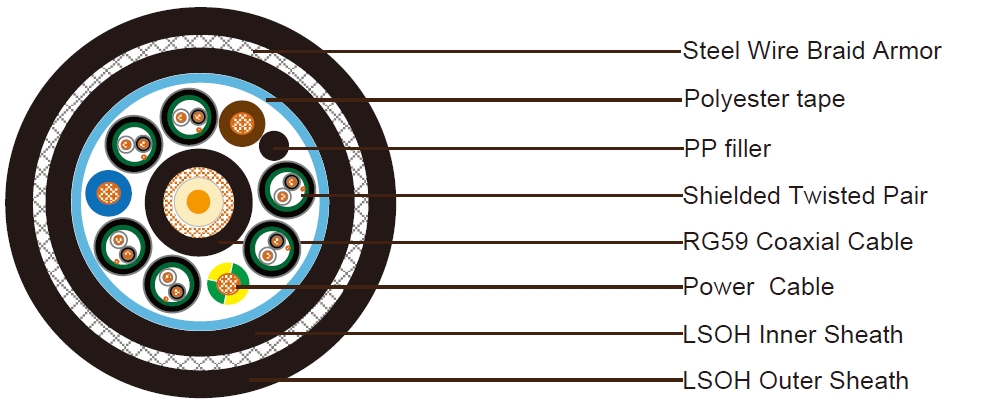

Construction:

Composite Cable

1x75Ohm RG59 Coaxial Cable(in the center of the cable core)

Conductor 0.58mm Solid coppe rconductor
Insulation Polyethylene.Thickness1.56mm
Shield Braid of bare copper wire. Coverage ≥ 95%
Sheath LSZH sheath. Nominal outer diameter 6.15mm
Sheath Color Black

6x1x2x24 AWG Shielded Control Cable

Conductor 7/0.2mm
Insulation PVC material. Thickness 0.47mm
Insulation Color Black and white
Shield Aluminium polyester tape
Drain Wire 24 AWG drain wire
Sheath LSZH sheath. Nominal outer diameter 4.8mm. Thickness 0.76mm
Sheath Color Black and Grey

3x1.5mm² Power Cable

Conductor wire to IEC 60228 Class 2 or BS 6360
Insulation XLPE compound to BS6234. Nominal outer diameter 3.0mm
Insulation Color Blue, Brown and Green/Yellow

Element Assembly

Filler PP, PVC or PE
Wrapping Tape Polyester tape
Inner Sheath Black LSZH, thickness 0.76mm
Armor 0.2mm Steel wire braid,coverage 95%
Outer Sheath LSZH, thickness 1.4mm, nominal outer diameter is 24.5mm
Sheath Color Black

Electrical and Physical Properties@20°C:

  • Min Bending Radius:360mm
  • Operating Temperature: -35°C/+90°C

Fire Performance:

  • Low Smoke Capacity:IEC61034-1/2
  • Halogen Free:IEC60754-1/2
  • Flame Propagation: IEC60332
