CCPSSP-FR0.3 n×1×1.4

Application

The cables are used as railway cables and can be installed directly into the ground or in ducts.

Standard

  • RENFE E.T. 03.365.051.6

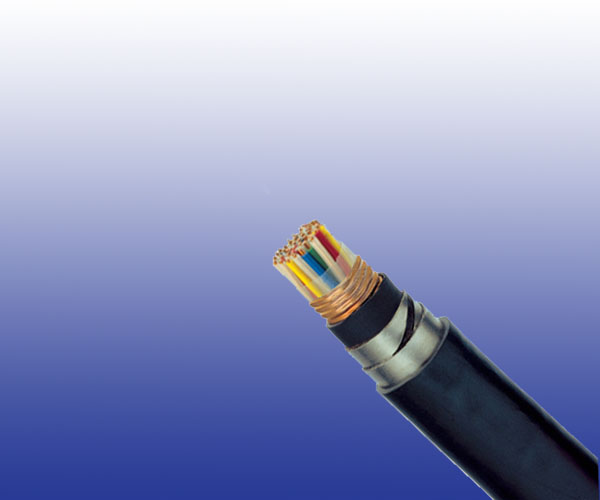

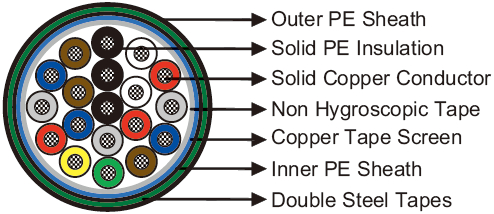

Cable Construction

CCPSSP-FR-0.3-n×1×1.4
  • Conductors: Soft annealed solid copper, 1.4 mm nominal diameter.
  • Insulation: PE insulation.
  • Stranding: Cores are helically stranded in concentric layers.
  • Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
  • Screen: Copper tapes with overlap (protection against interference).
  • Inner Sheath: PE sheath.
  • Armour: Two layers of steel tape (0.8mm thick).
  • Outer Sheath: PE sheath.

Electrical Characteristics at 20℃

Nominal Conductor Diameter mm 1.4
Maximum Conductor Resistance Ω/km 11.9
Minimum Insulation Resistance @500 V DC MΩ.km 15000
Resistance Unbalance % 2
Test Voltage @50Hz 1min
Core to Core Veff 2100
Core to Screen Veff 2500
Reduction Factor @100V/km 50Hz 0.3

Mechanical and Thermal Properties

  • Minimum Bending Radius: 10×OD
  • Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

Dimensions and Weight

Cable Code Number of
Cores
Nominal Sheath Thickness
mm
Maximum Overall
Diameter
mm
Nominal
Weight
kg/km
Inner Outer
1.4mm Conductor, 2.6mm Insulated Wire
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-2C1.4 2 1.5 1.6 16.5 530
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-4C1.4 4 1.5 1.6 17.5 608
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-7C1.4 7 1.5 1.6 19.0 718
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-9C1.4 9 1.5 1.6 22.7 914
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-12C1.4 12 1.5 1.6 23.2 977
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-19C1.4 19 1.6 1.8 25.2 1185
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-27C1.4 27 1.6 1.8 28.1 1437
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-37C1.4 37 1.7 1.8 31.4 1754
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-48C1.4 48 1.7 1.8 34.2 2062
