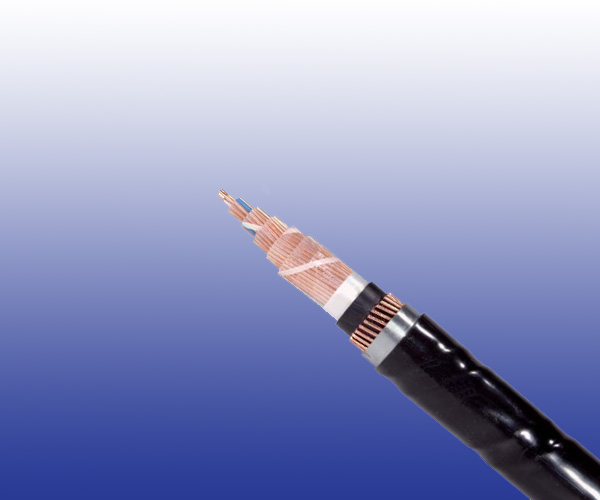

AJ-2Y2YDB2Y S(H115)/S(H145)/S(H95)

Application

The cables are designed for transmission of service tensions up to 600 VDC / 420 Veff AC100Hz in railway signalling networks, and are suitable for installation in ducts or laying directly into the ground.

Standard

  • Dlk 1.013.107y
  • Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
  • Dlk 1.013.110y

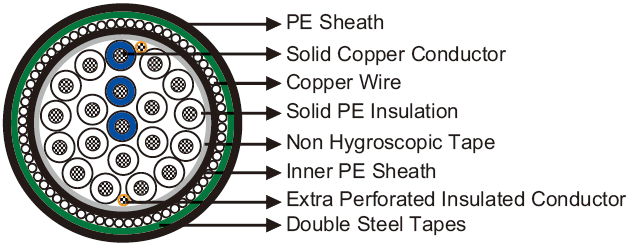

Cable Construction

AJ-2Y2YDB2Y
  • Conductors: Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.
  • Insulation: Solid polyethylene.
  • Stranding: Single conductors are helically stranded in concentric layers. Cables from 14 conductors on have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
  • Core Wrapping: Plastic tape(s) with overlapping.
  • Inner Sheath: Low density polyethylene.
  • Electrostatic Shield: One layer of helically applied copper wires (0.9, 1.2, 1.4 or 1.8mm).
  • Electromagnetic Shield: Two helically applied steel tapes (0.5 or 0.8mm thick, depending on required reduction factor).
  • Outer Sheath: Low density polyethylene.

Type Codes

  • AJ- outdoor cable with protection against inductive infl uences
  • 2Y solid PE conductor insulation
  • 2Y inner PE sheath
  • D copper wire concentric screen
  • B steel tape armor
  • 2Y outer PE sheath
  • S signal cable
  • LG layer stranding
  • H (n) operating capacity

Electrical Characteristics at 20℃

Nominal Conductor Diameter mm 0.9 1.4 1.8
Maximum Conductor Resistance Ω/km 28.9 11.9 7.2
Minimum Insulation Resistance @500 V DC (1min) MΩ.km 10000 10000 10000
Maximum Mutual Capacitance @800Hz (AC) nF/km 15 145/95* 145/95*
Dielectric Strength, conductor to conductor (DC voltage 1min) V 3535 3535 3535
Surveillance Conductors
Loop resistance, maximum Ω/km 190 190 190
Insulation resistance
- dry cable core, minimum MΩ.km 1000 1000 1000
- wet cable core, maximum KΩ.km 30 30 30
Nominal Reduction Factor @ 100 V/km, 16 2/3 Hz
rk 401 series 0.15 0.15 0.15
rk 501 series 0.35 0.35 0.35
rk 601 series 0.55 0.55 0.55
Operating Voltage AC/DC V 420/600 420/600 420/600
Test Voltage@50 Hz 1 min
Core to Core Veff 2500 2500 2500
Core to Screen Veff 2500 2500 2500

*The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.

Mechanical and Thermal Properties

  • Minimum Bending Radius: 10×OD
  • Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

Dimensions and Weight

AJ-2Y2YDB2Y n×1×0.9 S(H115)

Cable Code Number of
conductors
(n)
Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
Inner Outer kg/km
Inner Outer
0.9mm Conductor, 1.55mm Insulated Wire rk 601 Series
RS107y-2Y2YDB2Y-10C0.9-S(H115)-R6 10 1.3 1.2 19.0 520
RS107y-2Y2YDB2Y-20C0.9-S(H115)-R6 20 1.3 1.2 20.0 650
RS107y-2Y2YDB2Y-30C0.9-S(H115)-R6 30 1.3 1.2 22.0 780
RS107y-2Y2YDB2Y-50C0.9-S(H115)-R6 50 1.3 1.2 25.0 1010
RS107y-2Y2YDB2Y-80C0.9-S(H115)-R6 80 1.3 1.2 29.0 1330
RS107y-2Y2YDB2Y-120C0.9-S(H115)-R6 120 1.3 1.3 32.0 1740
RS107y-2Y2YDB2Y-160C0.9-S(H115)-R6 160 1.3 1.3 35.0 2310
RS107y-2Y2YDB2Y-200C0.9-S(H115)-R6 200 1.3 1.3 38.0 2520
0.9mm Conductor, 1.55mm Insulated Wire rk 501 Series
RS107y-2Y2YDB2Y-10C0.9-S(H115)-R5 10 1.3 1.2 19.0 600
RS107y-2Y2YDB2Y-20C0.9-S(H115)-R5 20 1.3 1.2 20.0 740
RS107y-2Y2YDB2Y-30C0.9-S(H115)-R5 30 1.3 1.2 22.0 890
RS107y-2Y2YDB2Y-50C0.9-S(H115)-R5 50 1.3 1.3 25.0 1150
RS107y-2Y2YDB2Y-80C0.9-S(H115)-R5 80 1.3 1.3 29.0 1480
RS107y-2Y2YDB2Y-120C0.9-S(H115)-R5 120 1.5 1.3 32.0 1910
RS107y-2Y2YDB2Y-160C0.9-S(H115)-R5 160 1.5 1.3 35.0 2530
RS107y-2Y2YDB2Y-200C0.9-S(H115)-R5 200 1.5 1.5 38.0 2730

AJ-2Y2YDB2Y n×1×1.4/1.8 S(H145)

Cable Code Number of
conductors
(n)
Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
Inner Outer kg/km
Inner Outer
1.4mm Conductor, 2.2mm Insulated Wire rk 601 Series
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R6 10 1.3 1.2 21 670
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R6 20 1.3 1.2 23.5 940
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R6 30 1.3 1.2 27 1180
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R6 50 1.3 1.2 31 1650
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R6 80 1.3 1.2 35 2270
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R6 120 1.3 1.3 41 3110
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R6 160 1.3 1.3 46 3900
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R6 200 1.3 1.3 49 4670
1.4mm Conductor, 2.2mm Insulated Wire rk 501 Series
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R5 10 1.3 1.2 21 780
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R5 20 1.3 1.2 23.5 1070
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R5 30 1.3 1.2 26 1320
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R5 50 1.3 1.3 31 1810
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R5 80 1.3 1.3 35 2460
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R5 120 1.5 1.3 42 3380
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R5 160 1.5 1.3 46 4190
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R5 200 1.5 1.5 49 5000
1.4mm Conductor, 2.2mm Insulated Wire rk 401 Series
RS107y-2Y2YDB2Y-10C1.4-S(H145)-R4 10 1.3 1.2 23 960
RS107y-2Y2YDB2Y-20C1.4-S(H145)-R4 20 1.3 1.2 25.6 1260
RS107y-2Y2YDB2Y-30C1.4-S(H145)-R4 30 1.3 1.3 28 1940
RS107y-2Y2YDB2Y-50C1.4-S(H145)-R4 50 1.3 1.3 33 2450
RS107y-2Y2YDB2Y-80C1.4-S(H145)-R4 80 1.5 1.3 38 3280
RS107y-2Y2YDB2Y-120C1.4-S(H145)-R4 120 1.5 1.5 44 4290
RS107y-2Y2YDB2Y-160C1.4-S(H145)-R4 160 1.5 1.5 48 5200
RS107y-2Y2YDB2Y-200C1.4-S(H145)-R4 200 1.5 1.5 52 6060
1.8mm Conductor, 2.7mm Insulated Wire rk 601 Series
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R6 10 1.3 1.2 23 850
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R6 20 1.3 1.2 27 1260
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R6 30 1.3 1.3 30 1620
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R6 50 1.3 1.3 36 2080
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R6 80 1.5 1.3 41 3310
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R6 120 1.5 1.5 48 4570
RS107y-2Y2YDB2Y-160C1.8-S(H145)-R6 160 1.5 1.5 54 5950
RS107y-2Y2YDB2Y-200C1.8-S(H145)-R6 200 1.5 1.5 58 6970
1.8mm Conductor, 2.7mm Insulated Wire rk 501 Series
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R5 10 1.3 1.2 23 970
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R5 20 1.3 1.2 27 1410
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R5 30 1.3 1.3 30 1780
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R5 50 1.3 1.3 36 2520
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R5 80 1.5 1.3 42 3570
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R5 120 1.5 1.5 49 5950
RS107y-2Y2YDB2Y-160C1.8-S(H145)-R5 160 1.5 1.5 55 6170
RS107y-2Y2YDB2Y-200C1.8-S(H145)-R5 200 1.5 1.5 59 7380
1.8mm Conductor, 2.7mm Insulated Wire rk 401 Series
RS107y-2Y2YDB2Y-10C1.8-S(H145)-R4 10 1.3 1.2 25 1160
RS107y-2Y2YDB2Y-20C1.8-S(H145)-R4 20 1.3 1.2 29 1700
RS107y-2Y2YDB2Y-30C1.8-S(H145)-R4 30 1.3 1.3 32 2400
RS107y-2Y2YDB2Y-50C1.8-S(H145)-R4 50 1.3 1.3 38 3350
RS107y-2Y2YDB2Y-80C1.8-S(H145)-R4 80 1.5 1.3 44 3310
RS107y-2Y2YDB2Y-120C1.8-S(H145)-R4 120 1.5 1.5 51 4900
RS107y-2Y2YDB2Y-160C1.8-S(H145)-R4 160 1.5 1.5 57 7340
RS107y-2Y2YDB2Y-200C1.8-S(H145)-R4 200 1.5 1.5 61 8650

AJ-2Y2YDB2Y n×1×1.4/1.8 S(H95)

Cable Code Number of
conductors
(n)
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
Inner Outer
1.4mm Conductor, 2.7mm Insulated Wire rk 501 Series
RS108y-2Y2YDB2Y-10C1.4-S(H95)-R5 10 1.3 1.2 22.0 900
RS108y-2Y2YDB2Y-14C1.4-S(H95)-R5 14 1.3 1.2 24.0 1010
RS108y-2Y2YDB2Y-20C1.4-S(H95)-R5 20 1.3 1.2 27.0 1220
RS108y-2Y2YDB2Y-30C1.4-S(H95)-R5 30 1.3 1.2 30.0 1520
RS108y-2Y2YDB2Y-50C1.4-S(H95)-R5 50 1.3 1.3 35.0 2090
1.4mm Conductor, 2.7mm Insulated Wire rk 401 Series
RS108y-2Y2YDB2Y-30C1.4-S(H95)-R4 30 1.3 1.2 32.0 2150
RS108y-2Y2YDB2Y-50C1.4-S(H95)-R4 50 1.3 1.3 38.0 2900
1.8mm Conductor, 3.4mm Insulated Wire rk 501 Series
RS108y-2Y2YDB2Y-10C1.8-S(H95)-R5 10 1.3 1.2 25.0 1130
RS108y-2Y2YDB2Y-14C1.8-S(H95)-R5 14 1.3 1.2 27.0 1330
RS108y-2Y2YDB2Y-20C1.8-S(H95)-R5 20 1.3 1.2 30.0 1620
RS108y-2Y2YDB2Y-30C1.8-S(H95)-R5 30 1.3 1.3 34.0 2340
RS108y-2Y2YDB2Y-50C1.8-S(H95)-R5 50 1.3 1.3 42.0 3020
1.8mm Conductor, 3.4mm Insulated Wire rk 401 Series
RS108y-2Y2YDB2Y-30C1.8-S(H95)-R4 30 1.3 1.3 37.0 2880
RS108y-2Y2YDB2Y-50C1.8-S(H95)-R4 50 1.3 1.3 44.0 3950
