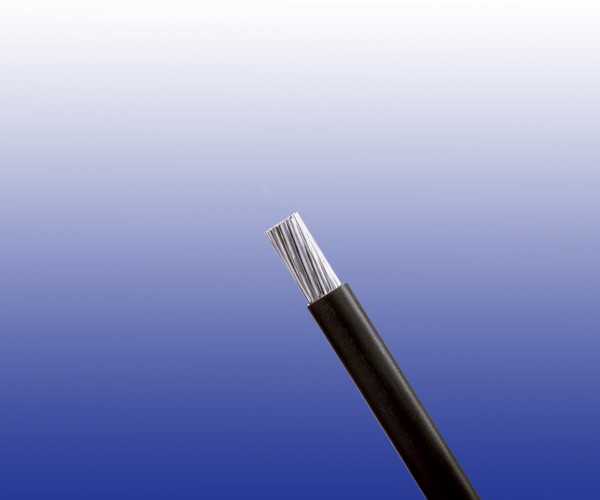

Pigtail Rail Connection Cables to SE260L

Application

These connection cables are designed for use in signalling equipment rooms.

Standard

  • SE260
  • UNE 21123

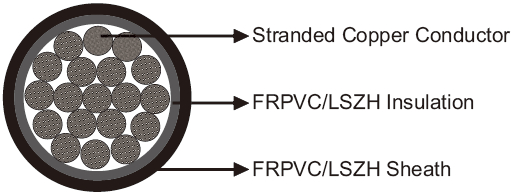

Cable Construction

Pigtail-Rail-Connection-Cables
  • Conductors: Stranded plain copper conductors to IEC 60228 class 2 or 5.
  • Insulation: FRPVC.
  • Outer sheath: FRPVC.

  • Optional

  • Limited fi re hazard pigtail rail connection cables: Stranded tinned copper conductors, LSZH composite insulation.

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 0.6
Maximum DC Conductor Resistance Ω/km 1.15/1.16*
Voltage Rating KV 0.6/1.0

*For LSZH cable

Mechanical and Thermal Properties

  • Minimum Bending Radius: 7.5×OD
  • Temperature Range:-25℃ to +85℃ (during operation); -10℃ to +70℃ (during installation)

Dimensions and Weight

Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²		 No. & Nominal
Diameter of
Strands
No/mm		 Nominal
Insulation
Thickness
mm		 Nominal
Sheath
Thickness
mm		 Nominal
Overall
Diameter
mm		 Nominal
Weight
kg/km
RF260-VV-K-0.6/1KV-1G16 1×16 19/1.04 0.7 1.4 10.3 249
RF260-RZ1-K-0.6/1KV-1G16 1×16 19/1.04 0.7 1.4 10.3 255

K is changed to U if the stranding class is changed from class 5 to class 2
