4GKW-AXplus-DW FE180 1.8/3KV Dual Wall Single Core

Application

Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standard

  • BS 6853 -1a
  • DIN 5510-1 1-4
  • NFF 16-101 F0

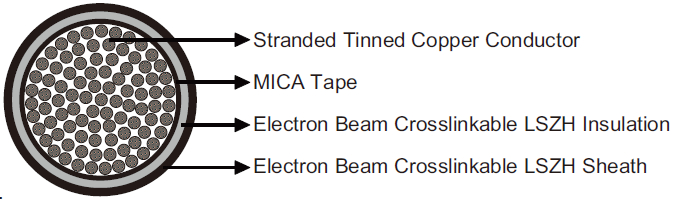

Cable Construction

4GKW-DW-FE180
Conductor Circular Class 5 stranded tinned copper to IEC60228/VDE 0295
Flame Barrier MICA tape
Insulation Electron beam crosslinkable LSZH compound
Sheath Electron beam crosslinkable LSZH compound

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm² 1.5 2.5 4.0 6.0 10 16 25 35 50
Maximum Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393
Voltage Rating KV 3.6/6
Nominal Conductor Cross Section mm² 70 95 120 150 185 240
Maximum Conductor Resistance Ω/km 0.277 0.21 0.164 0.132 0.108 0.0817
Voltage Rating KV 3.6/6

Mechanical and Thermal Properties

  • Minimum Bending Radius: 4xOD (Static); 6xOD (Flexing)
  • Temperature Range: -60℃ ~+120℃ (Static); -40℃ ~+90℃ (Flexing)
  • Short Circuit Temperature: +280℃

Dimensions and Weight

No. of cores& Nominal Conductor Cross Sectional Area No.×mm² Number and Nominal Diameter of Strands
No/mm		 Nominal Insulation Thickness mm Nominal Overall Diameter mm Nominal kg/km
1×1.5 30/0.25 1.05 4.90 38
1×2.5 50/0.25 1.15 5.35 50
1×4 56/0.30 1.25 6.10 88
1×6 84/0.30 1.30 7.00 93
1×10 80/0.40 1.30 8.10 142
1×16 119/0.41 126/0.40 1.15 9.30 210
1×25 182/0.41 196/0.40 1.50 10.8 290
1×35 266/0.41 276/0.40 1.50 12.1 400
1×50 378/0.41 396/0.40 1.60 13.8 561
1×70 348/0.51 360/0.50 1.70 16.2 760
1×95 444/0.51 475/0.50 1.90 18.0 980
1×120 551/0.51 608/0.50 1.60 20.2 1212
1×150 722/0.51 756/0.50 2.20 22.7 1520
1×185 874/0.51 925/0.50 2.40 24.6 1830
1×240 1147/0.51 1221/0.50 2.50 27.6 2411
